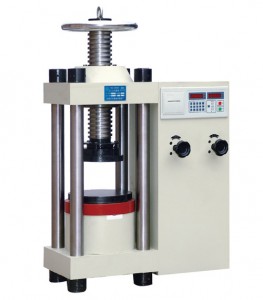

Model: CTM-1000/2000
Description
This machine is mainly used for compression strength test of concrete block, cement mortar and other construction materials, also for other material mechanical test.
Technical specification
| Term | CTM-2000 | CTM-1000 |
| Capacity range(KN) | 0-1000 | 0-2000 |
| Indication value relative error | ±1% | ±1% |
| Bearing platen size(mm) | 220*280 | 220*280 |
| Upper lower platens Max. distance(mm) | 330 | 330 |
| Piston Max. stroke(mm) | 40 | 40 |
| Piston dia.(mm) | φ250 | φ250 |
| Hydraulic pump rated pressure(Mpa) | 40 | 40 |
