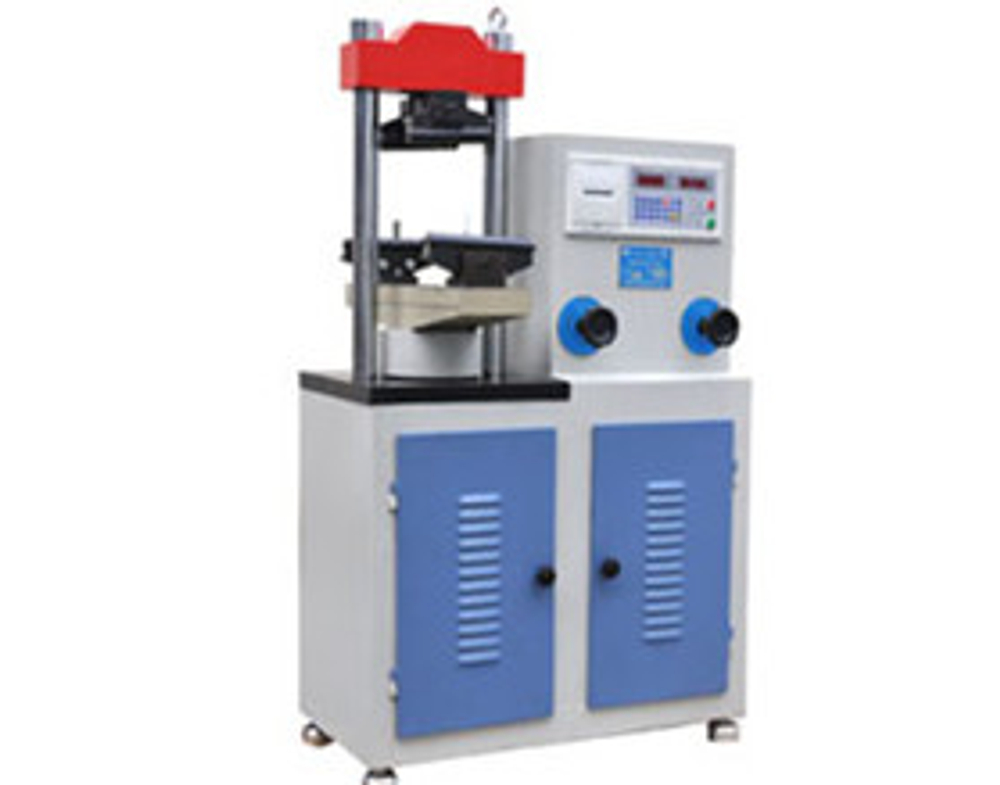

Model: CTM-100C
Application
This machine is mainly used to test the brick, cement mortar and other construction materials compression strength, also can used for other materials compression strength test.
Technical specifications
| Term | Spec. |
| Max testing force | 100KN |
| Indication error | ±1% |
| Hydraulic pump rated pressure | 25MPa |
| Flexural roller dia. | φ30mm |
| Upper down flexural roller max distance | 165mm |
| Two upper flexural roller center distance | 150mm |
| Two down flexural roller centre distance | 450mm |
| Platen diameter | φ155mm |
| Upper down platen max distance | 180mm |
| Piston max travel | 80mm |
| Piston diameter | φ90mm |
| Motor power | 3 phase 0.75kW 3-phase |
| Overall size | 850mm×460mm×1290mm |
| Net weight | Approx. 360kg |
