Model: YDZ-100
Description

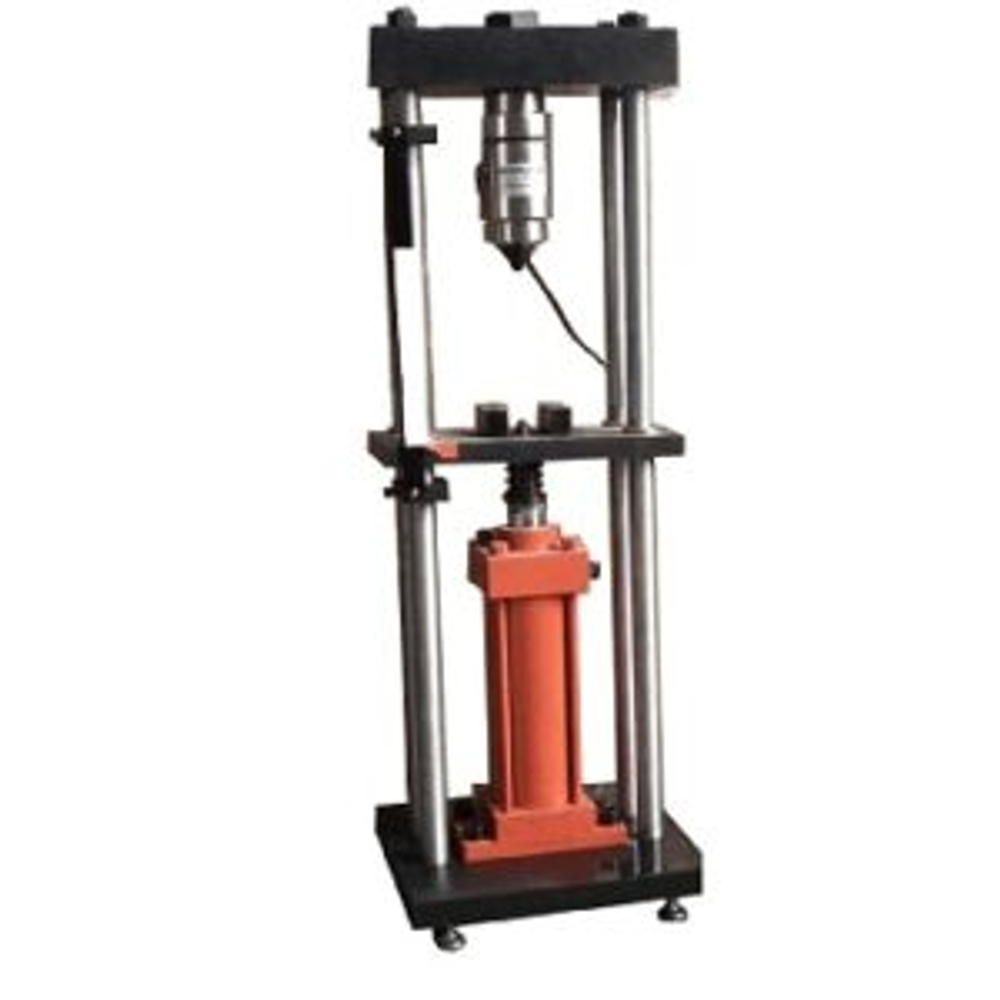

This point load tester is used test the rock compression strength, it features smaller pressure, no requirements of test sample, suitable for in-situ application, it’s suitable for rock with lower strength. It’s kind of common rock testing equipment.
Features
Four column structure frame, good alignment even under long time test
High quality bi-directional hydraulic cylinder, guarantee levelness of upper and lower ends face;
The bi-directional hydraulic cylinder can return automatically
Manual hydraulic pump features more stable than the jack, more even force, higher accuracy
Peak value maintain function
Technical Specifications
Max working pressure: 50Mpa
Piston diameter: ф35mm
Piston Stroke: 160mm
Max working pressure: 100KN
Display mode digital
Max sample height: 150mm
Min sample height: 0
Sample max width: 108mm
