Model: GL-1200D
Description

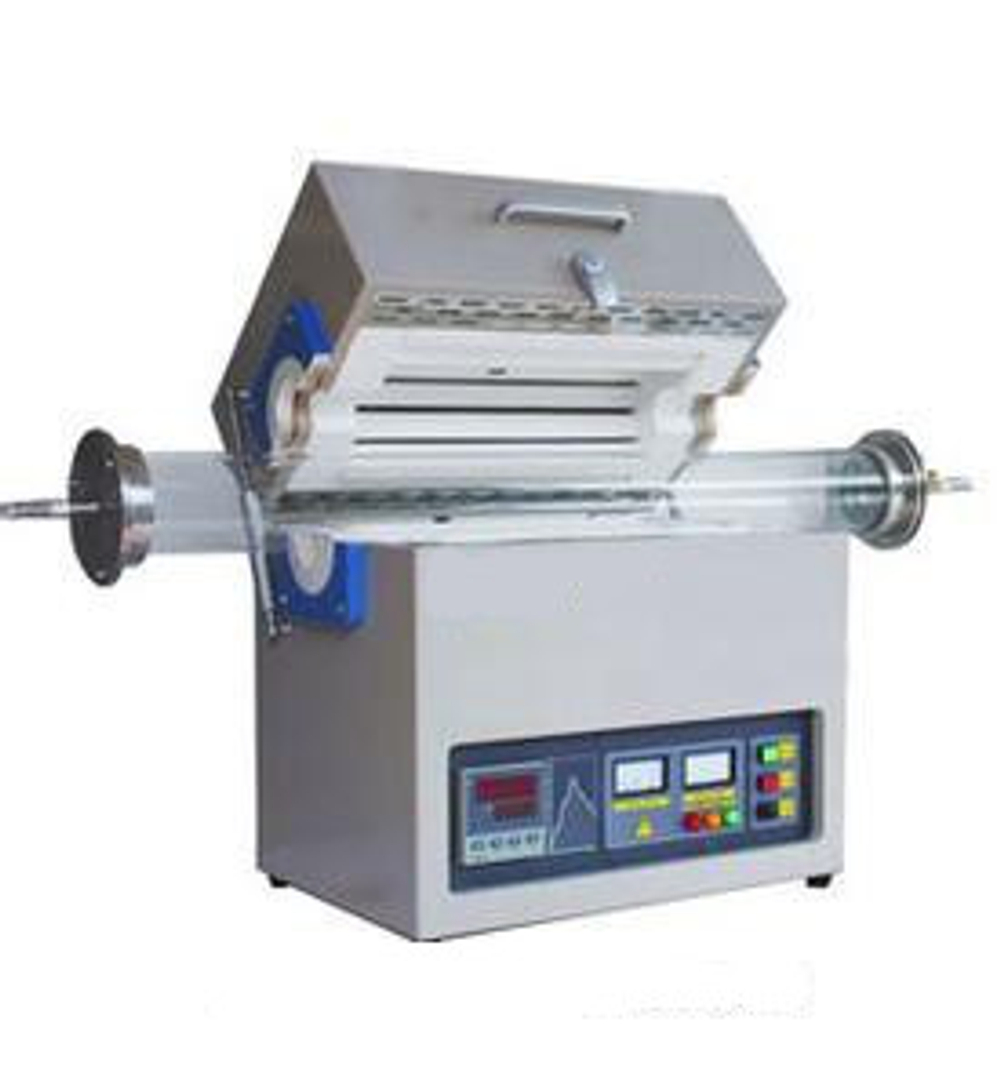

This multi station vacuum tube furnace is comprised of two part, the upper part furnace tube can rotate by 360°, the lower is electric control part. Easy to place sample and to observe the test. The hearth material is made of high purity alumina fiber, molybdenum alloys heating wire, four plane heating; stainless steel vacuum flange sealing, thermal insulation plug at two ends, air inlet and outlet at flange. This furnace can be tilted rotation to let the sample heat sufficiently, can connect with computer to let computer to control the operation of single or multi furnace, real time tracking, historic record, output test report.
Application
Powder sintering, ceramic sintering, high temperature test, quality test.
Technical Specifications
| Working temperature | 1100℃ |
| Highest temperature | 1200℃ |
| Furnace tube size | Φ50mmx600mm |
| Sample size | 400×260×600mm （or customized） |
| Temperature control system | Pid 30 stages programmable automatic control |
| Temperature protection | over temperature thermocouple broken alarming function |
| Temperature accuracy | ± 1℃ |
| Heating rate | 0~20 ℃ / min |
| Heating area length | 200mm |
| Vacuum sealing system | Equipped with stainless steel vacuum sealing flange, stainless steel stop valve at air inlet and outlet end. Vacuum degree: 10-2 torr （ mechanical pump ）； 10-5 torr（ molecular pump ） |
| Heating element | Molybdenum alloys heating wire |
| Power supply | Ac 220v, 50 hz |
| Max power | 2kw |
| Heating element | k type platinum rhodium thermocouple temperature measurement |
| Air tightness | 4.03×10-3pa |
| Net weight | 30 kg |
| Furnace tube | Gas forming quzrtz corundum furnace tube |
| Furnace cover temperature | ≤45℃ |
| Standard accessories | Vacuum pump, vacuum flange, vacuum gauge, plug |
| Electric certification | CE |
