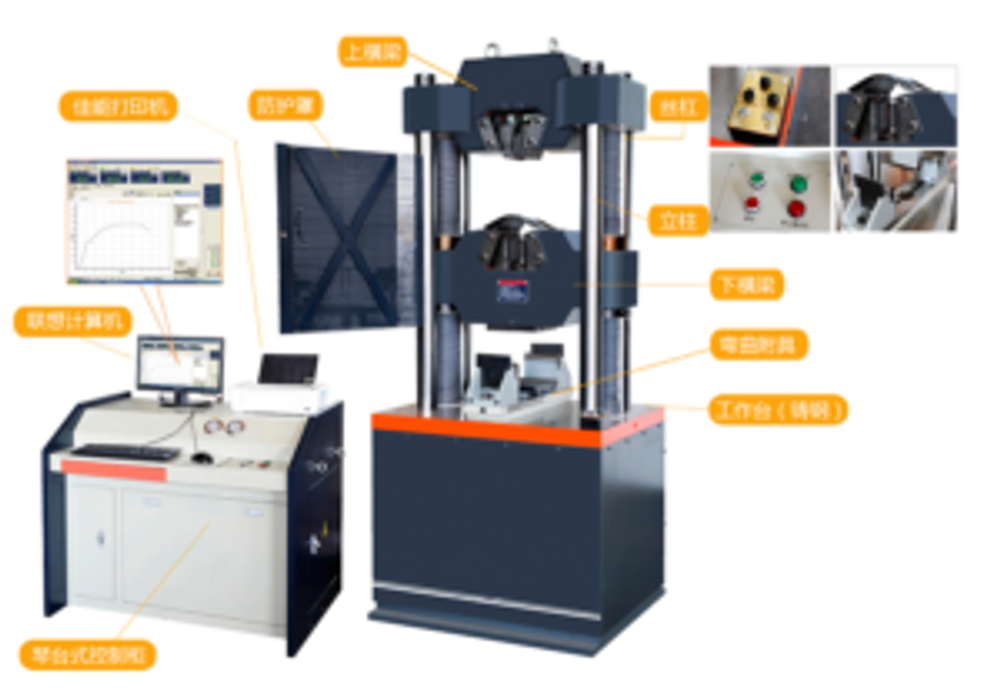

Model: UTM-1200D
Description
This model UTM is powered by hydraulic, it’s mainly used for mechanical testing of metal and nonmetal material under normal temperature condition. It mainly can perform tensile, compression, bending, shear tests. Controlled by servo system to enable automatic control of oil flow, thus to enable precision close-loop control thus to achieve constant load, constant displacement, constant strain tests. Four robust columns to guarantee rigidness of main frame when testing; Powerful application software, test data real time indication on computer screen, different test mode can be setup, different test standards selectable according to different materials, test curve real time generation; complete test parameters presentation in report. Real time test report print output.
| Max nominal test load | 1200 kN |
| Effective test load range | 5%~100%F.S |
| Test load min readout | 0.01kn |
| Test load accuracy | ≤±1% |
| Displacement min readout | 0.01mm |
| Displacement accuracy | ≤±1% |
| Strain min readout | 0.01mm |
| Strain accuracy | ≤±1% |
| Tensile test daylight | max 900 mm |
| Compression test daylight | max 700 mm(not including piston displacement) |
| Piston stroke | 250 mm |
| Round sample jaw dia. | Φ13-Φ60 mm |
| Flat sample jaw thickness | 0-40 mm |
| Flat sample max clamping width | 120 mm |
| Plate size | 204×204 mm |
| Bending test supporting points distance | 450 mm |
| Bending support roller width | 140 mm |
| Bending supporting roller diameter | Φ40 mm |
| Piston max moving velocity | 50 mm/min |
| Clamping way | hydraulic automatic gripping |
| Main frame size | 1210×1000×2850mm(when not work) |
| Controller size | 1000×700×1400 mm |
