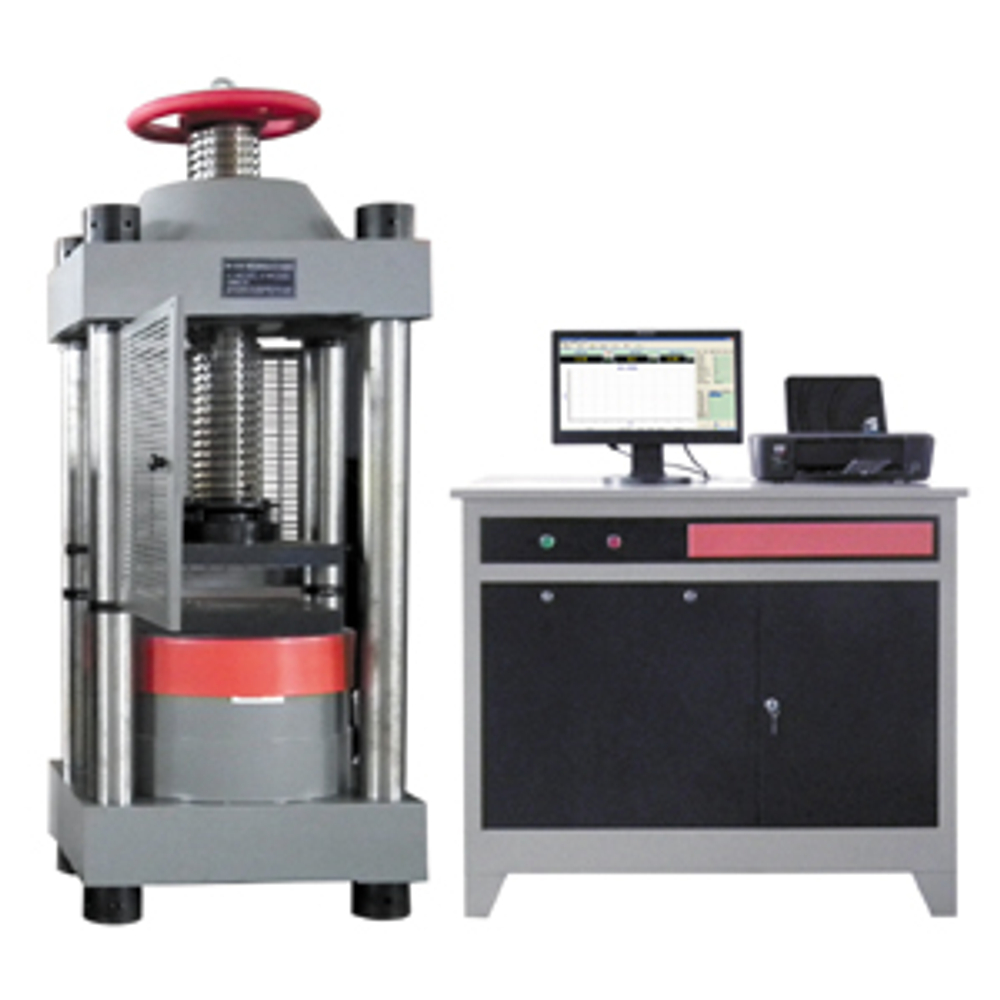

Model: DCTM-2000D/3000D
Description
This compression testing machine is mainly used for compression strength test of construction materials such as rock, concrete, cement, hollow brick, Flyash brick, fireproofing material, stone, rubber bearing, large structure. It’s kind of advanced material testing machine.
Features
Precision sensor, computer control, can automatic save, query and print test report, screen will display force value, peal load, curve and the loading process. Full-digit control system: whole range no grading, automatic zero set, calibration.
High accuracy sensor and digital control valve, full automatic control, automatic broken test;
Full English interface, easy operation, direct display of force value, peak value, loading speed, test curve
Database for lab networking;
Customized test report format
Easy calibration as per instructions on user manual
Lenovo desktop computer, colorful printer
Technical Specifications
| Max test force | 2000kn | 3000KN |
| Load accuracy | ≤±1% | ≤±1% |
| Column gap | 380mm | 380mm |
| Compression test space | 0-370mm | 0-370mm |
| Platen size | 370*370mm | 320*320mm |
| Piston stroke | 50mm | 50mm |
| Loading rate | 0.1-25kN/s(digital setting) | 0.1-25kN/s(digital setting) |
| Space adjustment mode | Manual screw rod(or electric screw) | Manual screw rod(or electric screw) |
| Overload protection | <103%F.S | <102%F.S |
| Motor power | 0.75kw | 0.75kw |
| Working voltage | 380V/220V | 380V/220V |
| Main machine size | 800×600×1650mm | 640×500×1600mm |
| Oil cylinder size | 1070×650×1400mm | 450×400×1100mm |
| Total weight | 1300kg | 1300kg |
