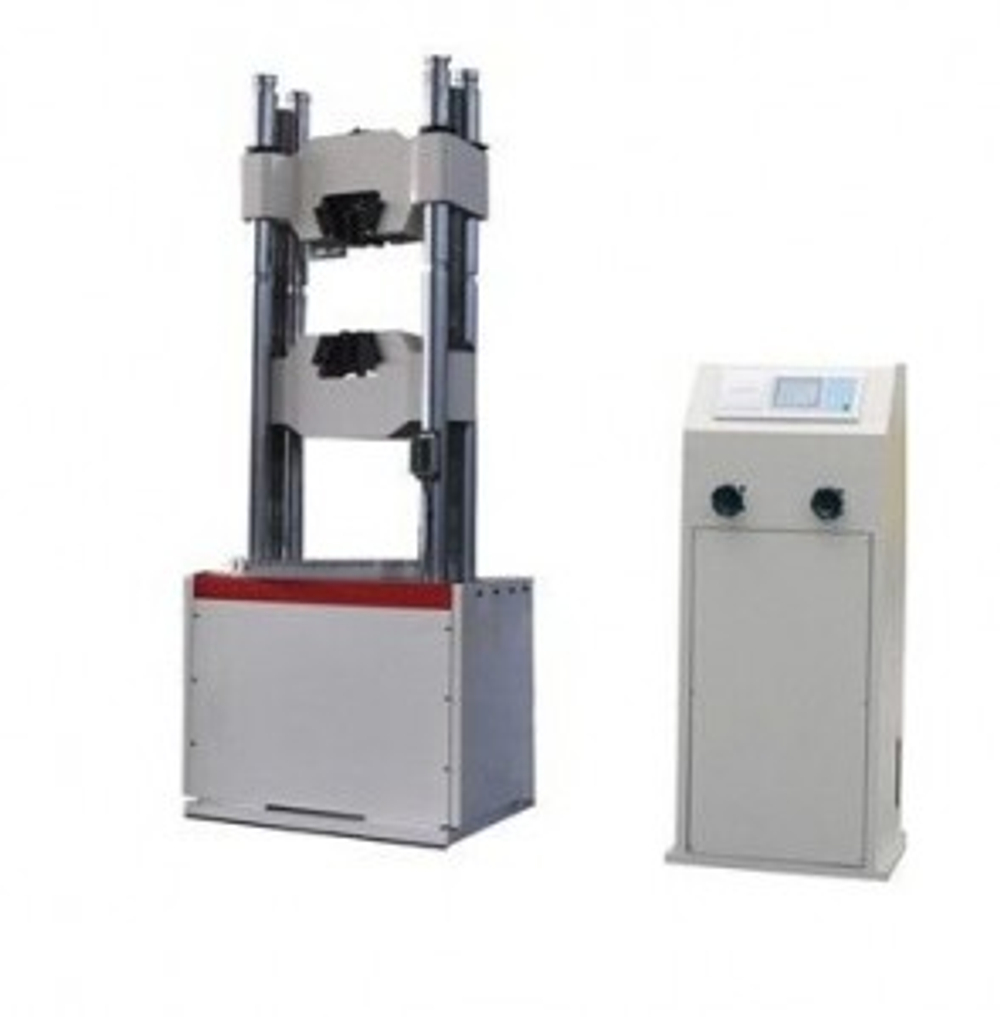

Model: UTM-2000
Technical specifications
| Max testing force | 2000 kN |
| Load range | 40-2000KN |
| Testing accuracy | ±1% |
| Max tension test space | 900mm |
| Max compression test space | 800mm |
| Flat sample clamping thickness | 0-60mm |
| Round sample clamping diameter | Φ15-70mm |
| Compression platen diameter | 204*204 mm |
| Two column distance | 700mm |
| Bending roller distance | 450mm |
| Bending roller width | 140mm |
| Bending pressure head | Φ40mm |
| Piston stroke | 250mm |
| Indicating max error | ±1% |
| Clamping mode | hydraulic clamping |
| Oil pump motor power | 2.2KW |
| Beam motor power | 1.1KW |
| Main machine overall dimension | 1160×1100×3280 (mm) |
| Control cabinet overall dimension | 1010×650×870(mm) |
| Net weight | 4500 kg |
