Model:LBH-20
Description

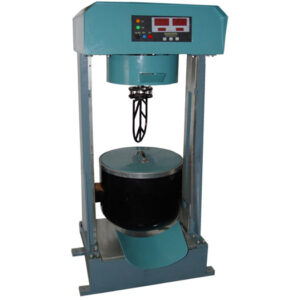

The automatic asphalt mixture mixer is used to mix the asphalt mixture for specimen made. It features compact size, space-saving, easy operation, it’s widely used in asphalt production, civil engineering, colleges, and research institutions.
Features
a. It adopts advanced micro-computer control technology, can set the mixing temperature freely within room temperature-200℃, by using intelligent PID control mode, reach automatic control on mixing time.
b. It has phase sequence-protection function, can avoid damage to machine caused by phase sequence error.
c. Floor type structure, novel design, easy operation.
Technical specification
1. Mixing capacity, 20L;
2. Temperature control range: room temperature-200℃
3. Temperature control accuracy: ±5℃
4. Time-control range: (0~999 s)
5. Time control accuracy: ±0.1s
6. Mixing rotation speed: revolution speed: 47r/min, rotation speed 76rpm
7. Mixing motor: AC 380V、550W;1400R/min; 50Hz
8. Lifting motor AC 380V, 250W, 1400rpm, 50Hz
9.Overall size: 600mm×400mm×1300mm(L×W×H)
10. Machine weight: 215kg
11.Working power: AC 380V±10%; 16A; 50Hz(3 phase, 4 wire)
12.Ambient temperature: ≤80%
13. Relative humidity: ≤80%
