Model: MP-3000E+

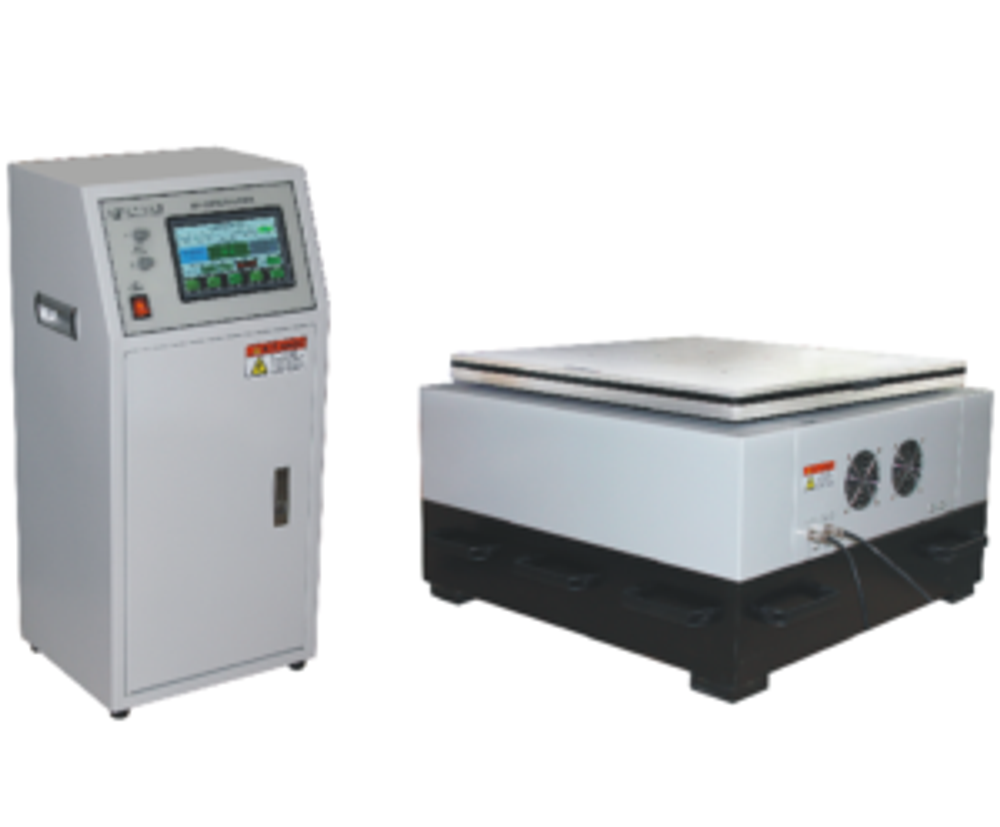

This vibration test bench is used to test the anti-vibration performance of electronic products, touch screen operation, programmable frequency, 3 axis vibration, power failure data hold, it features more stable and reliable.
Technical specifications
1.1 Working power: AC220V±10%-50Hz
1.2 Rated maximum power: 1.2kw
1.3 Rated test load weight: 50kg
1.4 Working table size L.W.H.(mm): 600×600×45
1.5 Vibration frequency range: 0～200Hz (fixed frequency or sweep frequency can be set arbitrarily)
1.6 20 different vibration parameters can be set, the maximum test time for each segment is 999minutes, and the number of cycles can be set arbitrarily from 0 to 200 times (standard model)
1.7 No-load vibration amplitude: 0～5mmPP; (Note: Vibration amplitude-changes due to changes infrequency and weight, no-load amplitude cannot be greater than ±2.5mm, maximum acceleration:
need to be calculated)
1.8 Vibration direction: horizontal/vertical/front and back (X, Y, Z).
