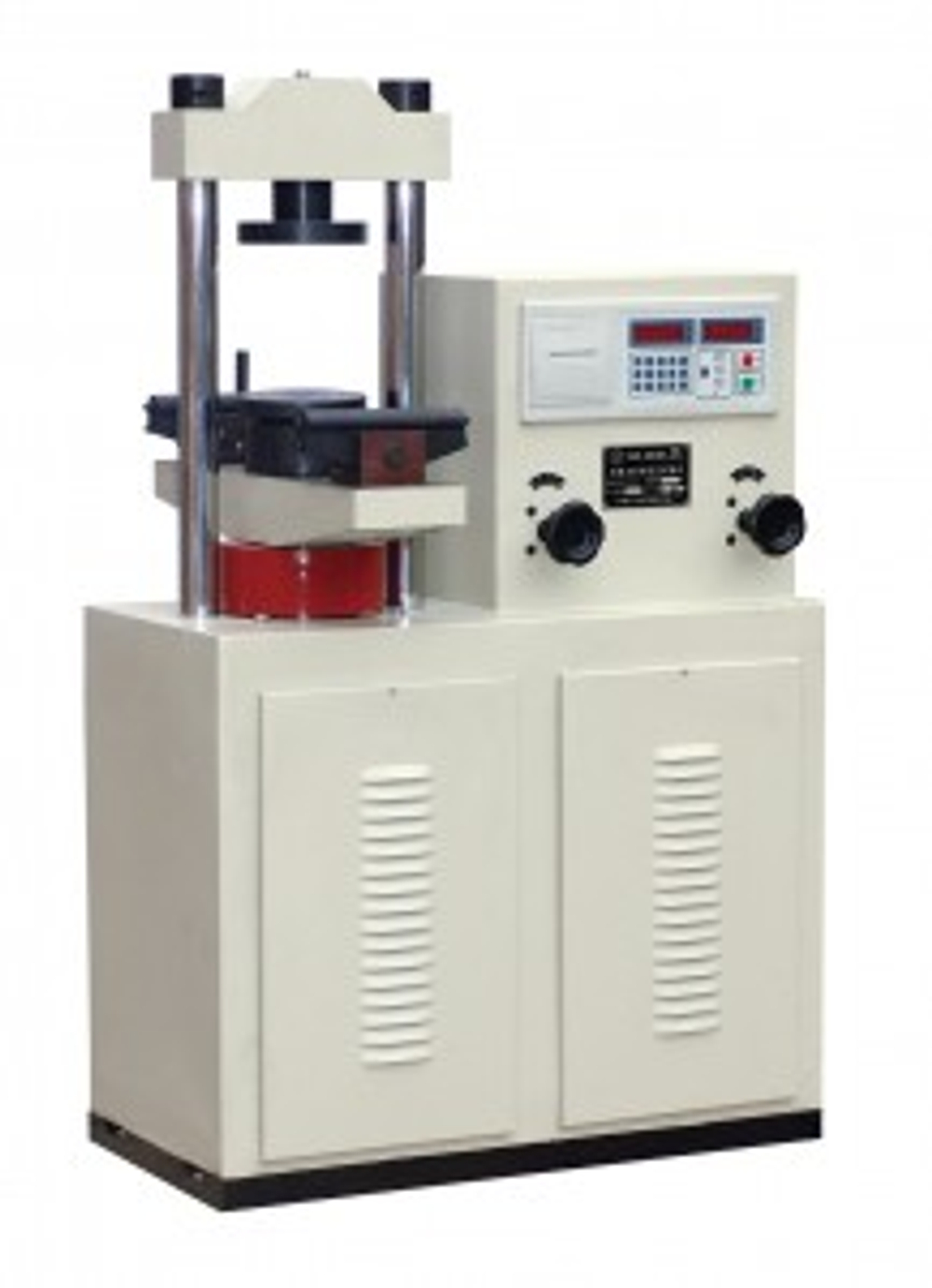

Model: CTM-300C
Description
This machine is mainly used for compressive & flexural strength test of brick, cement mortar and other construction materials.
Technical specification
| Term | Spec. |
| Max testing force | 300KN |
| Indication value relative error | ±1% |
| Hydraulic pump rated pressure | 25MPa |
| Platen diameter | φ155mm |
| Up down platen max distance | 180mm |
| Piston max stroke | 80mm |
| Piston diameter | φ125mm |
| Motor power | 3P 0.75kW 3-phase |
| Overall size | 850mm×600mm×1160mm |
| Net weight | 400kg |
