Model: GGS42-1
Description

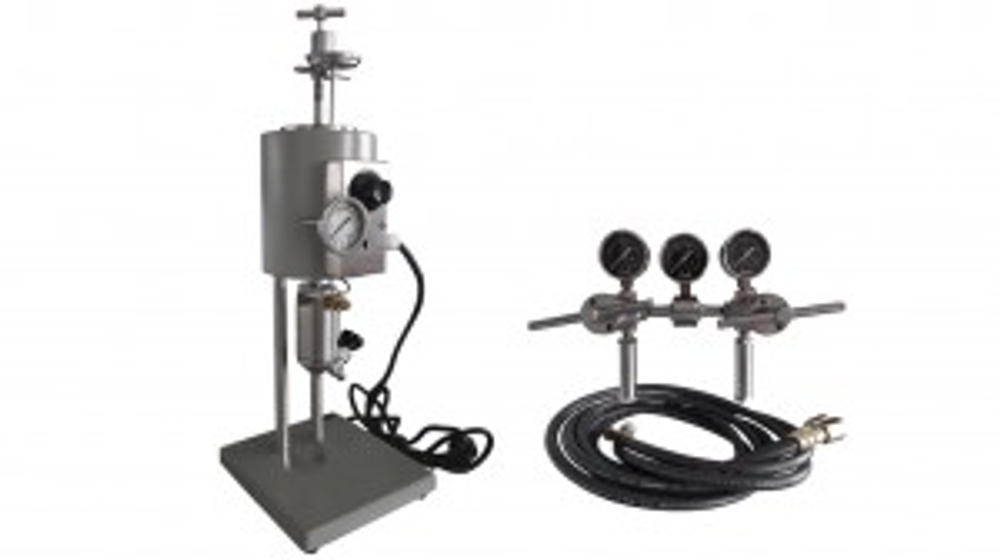

The HTHP Filter press is used to simulate the drilling fluids and cement mortar filtration quantity and to make the filter cake formed after filtration under HTHP condition. It features high accuracy, good repeatability, easy operation. It’s kind of common drilling fluids instrument.
Technical Specifications
| Power supply | 220v±5%50hz |
| Power | 400w |
| Working temperature | Rt-150℃ |
| Drilling fluids cup working pressure | 4.2Mpa |
| Back pressure | 0.7mpa |
| Valid filtration area | 22.6cm2 |
| Drilling fluids cup max pressure | 6mpa |
| Mortar cup volume | 175ml |
