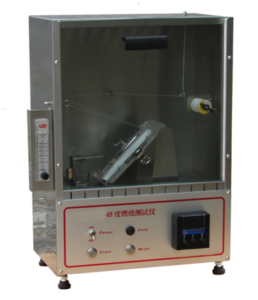

45 degree flame test chamber 16CFR 1610 ASTM D1230

Model: RS-1230

Standards: 16CFR 1610, ASTM D1230

This tester is mainly used to test the Flame-retardant property of fabrics and clothes that used for garment, toys, furnitures. It complies to the 16CFR 1610, ASTM D1230 standard.

Features

Made of quality SUS material

Rotor flow meter to adjust the flame height

Heat-proof glass observe door

Foreign made quality gauges and metal keypress

High quality foreign made motor and reducer

Technical specifications

Flame height: 16±1mm

Timing range: 0~99.9s

Flow meter measuring range: 0~60cc/min

Lighter top distant to sample: 8mm

Sample size: 150mm×50mm

Power supply: AC 220V, 50hz

Overall size: 420×220×530mm (L×W×H)

Net weight: 25kg
