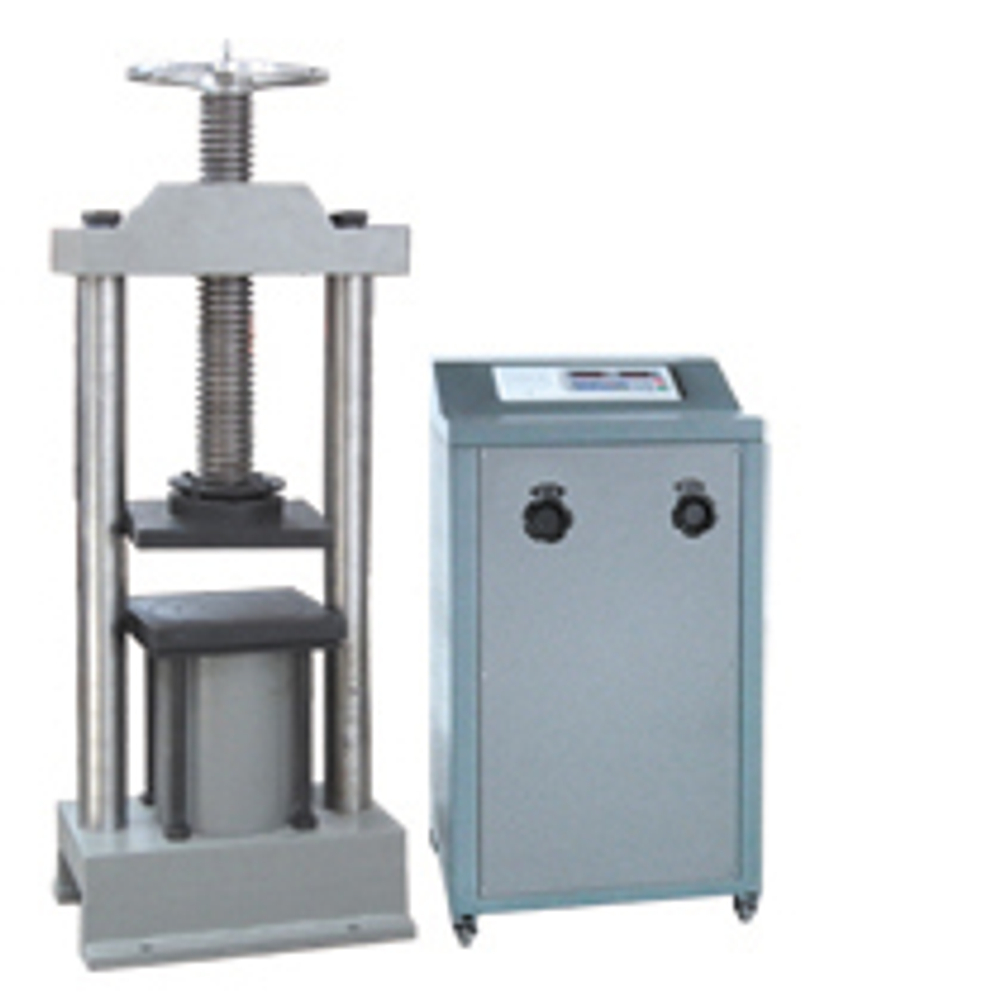

Model: CTM-600
Description
This compression testing machine is mainly used for compression strength test of construction materials such as rock, concrete, cement, hollow brick, Flyash brick, fireproofing material, stone, rubber bearing, large structure. It’s kind of advanced material testing machine.
Features
MCU control system, dual screen display, loading rate, force value digital display, test data automatic saving, free check, automatic print, perpetual calendar function. Micro printer print test result.
Overload protection function
Technical specifications
| Measuring range | 0~600KN |
| Indication accuracy | ±1% |
| Compression test space | 0-340mm |
| Column gap | 340mm |
| Piston stroke | 50mm |
| Platen size | 300×300mm or customized |
| Motor power | 0.75KW |
| Power supply | AC 380V 50Hz |
| Total weight | 600kg |
| Overall size | 700mm×500mm×1500mm |
