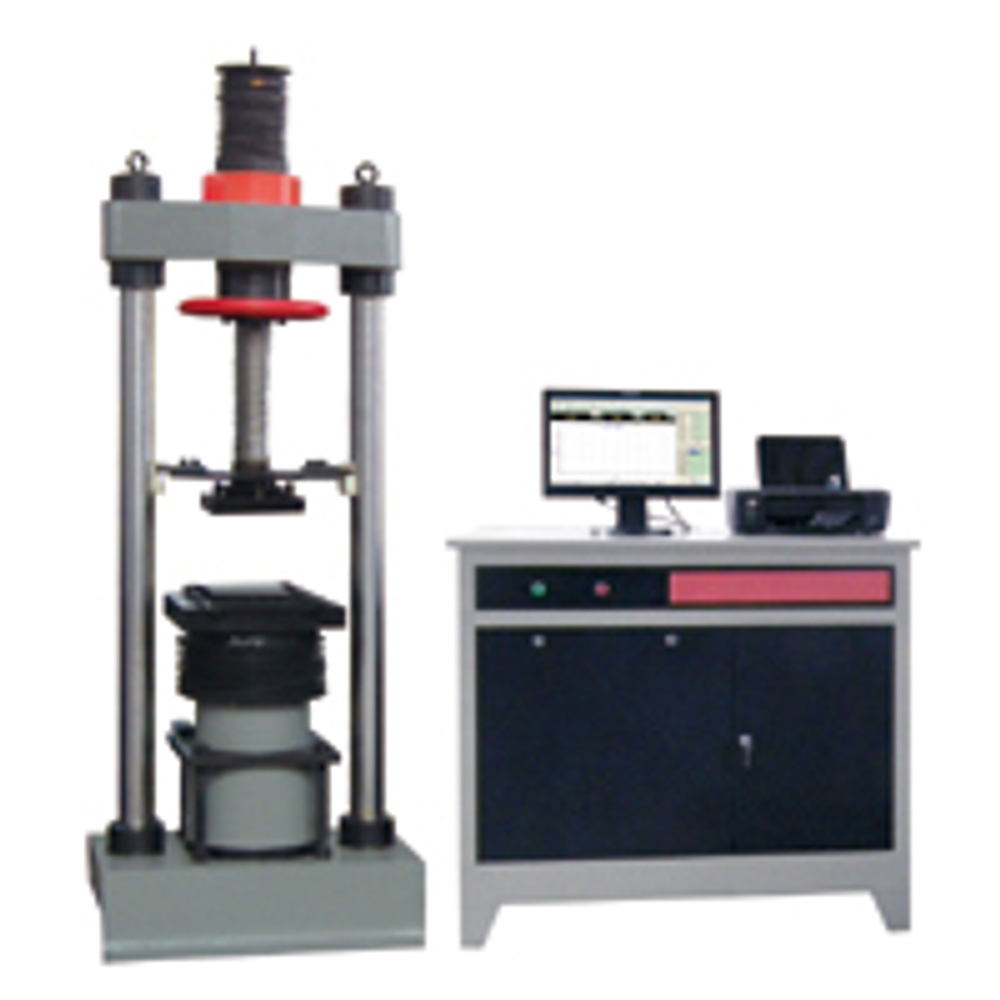

Model: DCTM-600D Description This compression testing machine is mainly used for compression strength test of construction materials such as rock, concrete, cement, hollow brick, Flyash brick, fireproofing material, stone, rubber bearing, large structure. It’s kind of advanced material testing machine. Features
Precision sensor, computer control, can automatic save, query and print test report, screen will display force value, peal load, curve and the loading process. Full-digit control system: whole range no grading, automatic zero set, calibration.
High accuracy sensor and digital control valve, full automatic control, automatic broken test; Full English interface, easy operation, direct display of force value, peak value, loading speed, test curve Customized test report format Easy calibration as per instructions on user manual Lenovo desktop computer, colorful printer Technical specifications
| Max test force | 600kn |
| Load accuracy | ≤±1% |
| Column gap | 420mm |
| Compression test space | 0-600mm |
| Platen size | 200*200mm or customized |
| Piston stroke | 200mm |
| Loading rate | 0.1-30kN/s(digital setting) |
| Space adjustment mode | Manual screw rod |
| Load measurement | Load cell |
| Overload protection | <103%F.S |
| Motor power | 0.75kw |
| Working voltage | 380V/220V |
| Main machine size | 700mm×500mm×2000mm |
| Oil cylinder size | 1070×650×1400mm |
| Total weight | 900kg |
| Working temperature | 5℃-35℃ |
