Model:LBH-60
Description

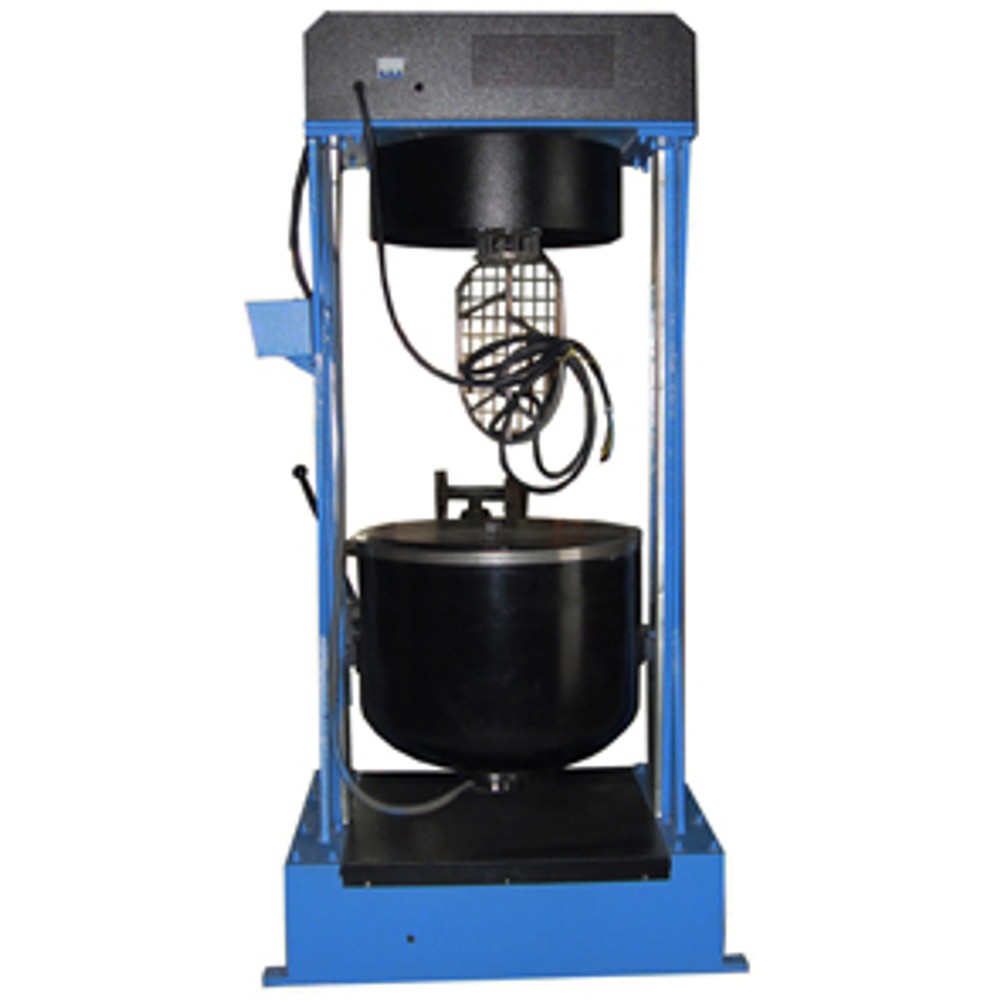

This asphalt mixer is used to mix the asphalt mixture in lab, it features compact size, easy in operation. it’s widely used in asphalt production, civil engineering, research institution.
Features
a. The working temperature can be set freely within the range of room temperature RT~200, and it’s regulated in PID mode to reach accurate control.
b. The max mixing capacity is 60L, it’s equipped with heater, ascender, dumper.
c. It has phase sequence protection function, can avoid the machinery damage caused by sequence error.
d. It’s of floor type structure.
Technical specifications
| Mixing capacity | 60L |
| Temperature control range | Room temperature~200℃ |
| Temperature control precision | ±5℃ |
| Time control range | 0~999s |
| Time control precision | ±0.1s |
| Mixing rotation speed | Revolution: 42rpm, rotation 67rpm |
| Mixing motor | 380V, 2200W, 1400RPM, 50Hz |
| Lifting motor | 380V, 750W, 1400rpm, 50Hz |
| Overall size | 1066mm×650mm×2100mm(L*W*H) |
| Total weight | 1100Kg |
| Working power supply | 380±10%V, 30A，50hz(3 phase, 4 wire) |
| Ambient temperature | -5℃~+50℃ |
| Ambient humidity | ≤80%(Relative humidity) |
