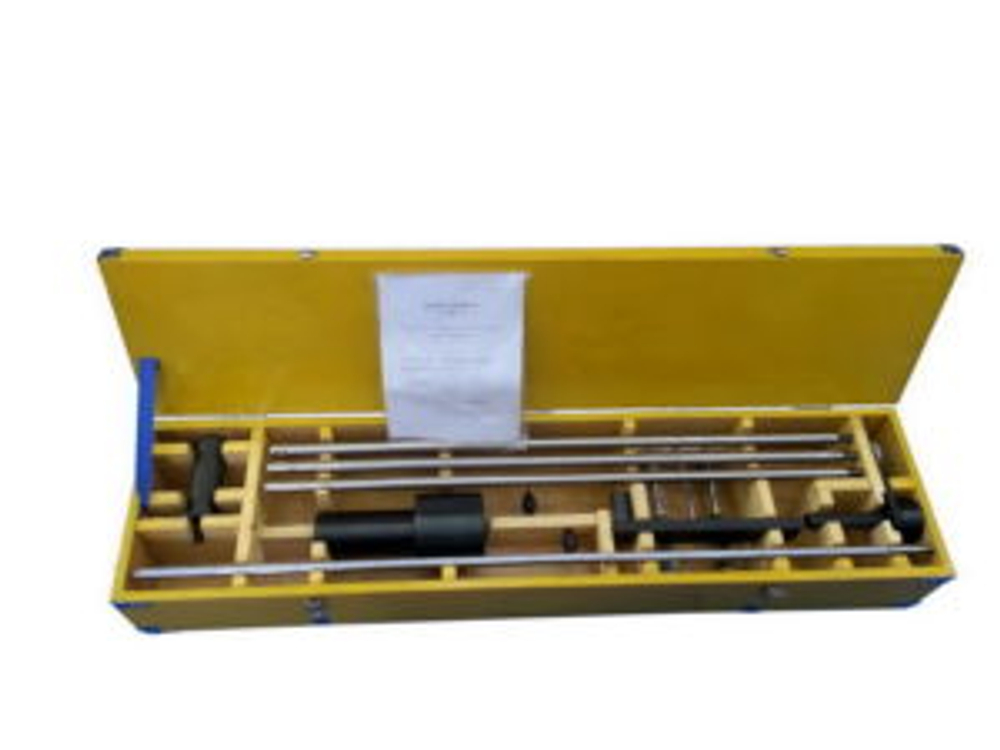

Model: DCP-TRL
Standards: ASTM D6591
The DCP Dynamic Cone Penetration test has good relations with CBR and resilience modulus, thus can be used to evaluate the roadbase strength. Features quick, easy to operate, no limited to filed conditions. The DCP is developed by the TRL As per AASHTO standards, the DCP has below relations with CBR: CBR=405.3/PR1.259
Wherein the PR is the penetration rate(mm/strike times), CBR, %.
Technical specifications
Scale length: 1000mm
Penetration rod upper rod: 803mm
Connecting plate dia.: 105mm
Drop distance: 575±1mm
Penetration rod lower trod: 910mm
Baseplate size: 300mm×60mm×8mm
Drop hammer weight: 8±0.1 Kg(17.6-lb)
Dynamic cone: dia. 20±0.25mm, cone angle 60°±1°degree
Penetration rod effective length: 1000mm, mm and inch two scalemark
