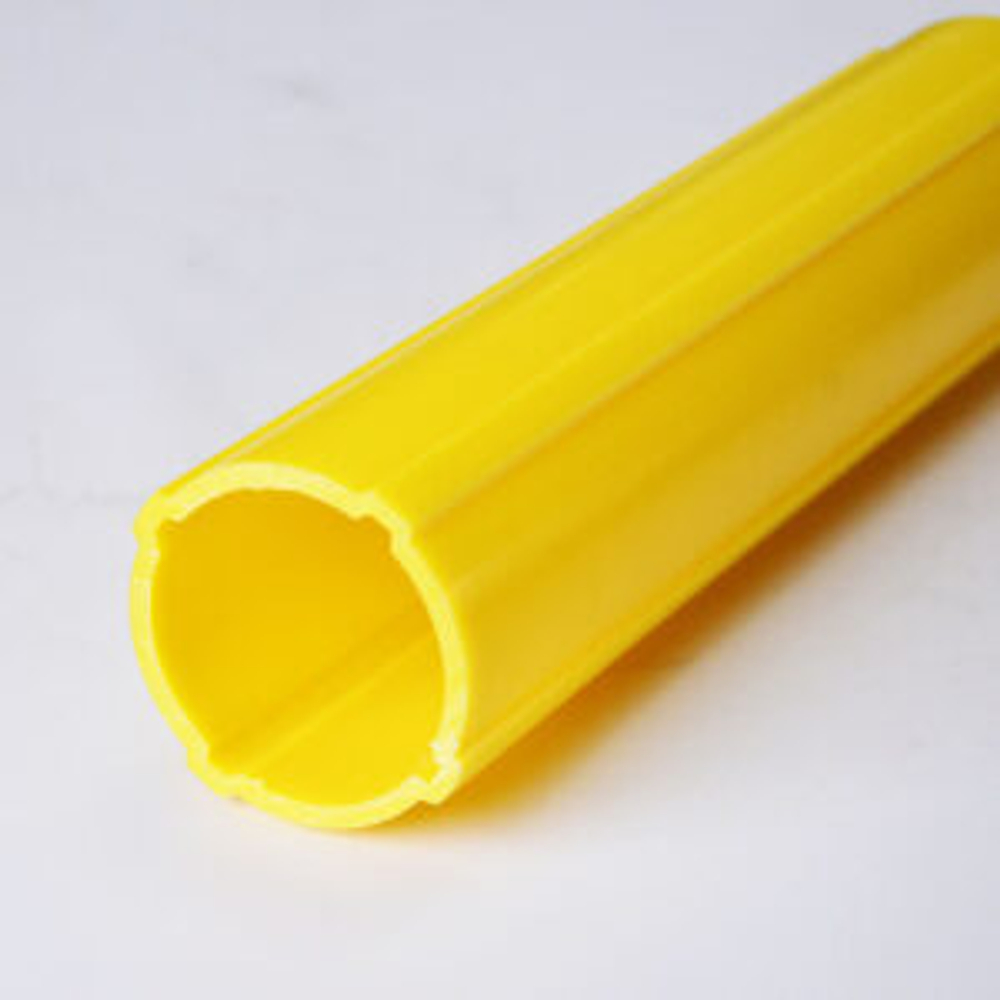

The ABS high-precision inclinometer tube can be combined with various inclinometer probes for stability monitoring of dams, slopes, pit foundations, piles, cofferdams, etc. Optional connecting pipe (purchased separately) and bottom cover (purchased separately). The ABS inclinometer tubes are much better than the pvc inclinometer tubes on toughness and impact strength.
Specifications
| Outer diameter | Ф53mm | Ф65mm | ф70mm | Ф90mm |
| Inner diameter | Ф43mm | ф54mm | ф59mm | Ф79mm |
| Guide slot bottom width | 4mm | 2.5mm | 4mm | 4mm |
| Guide slot depth | 2.5mm | 2.5mm | 2mm | 2mm |
| Torsion angle of guide slot | ≤0.2 | |||
| Tube length | 2m, 4m | |||
