Model: HYH-84
Description

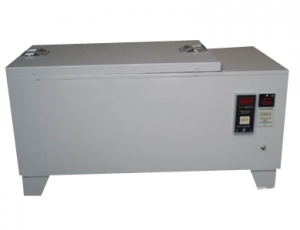

This tank is used for fast curing of concrete specimen, it can test the compression and anti-flex characteristics of the specimen of its next 3/7/24 days within 24hours. Thus greatly shorten the cement inspection period.
Technical specifications
1. Temperature control range: RT-100℃
2. POWER SUPPLY: AC 380V 50HZ
3. Electric heating power: 3KW/unit, totally 9KW
4. Water reservation: 125KG
Time control: 0.5-24hours
Heating power: 1000W/220V
Chamber inside size: 800*580*400mm
Allowed specimen quantity: 3 pairs of triplex 100*100*100mm mould, or 2 pairs of 150*150*150MM triplex specimen
Structure
The chamber is comprised of inner chamber, outer chamber and heat-insulation layer, the inner and outer are all made of high-quality stainless steel. the interlayer is filled with high quality heat-insulation layer. The water trough is the sealing part between the chamber body and the cover.
