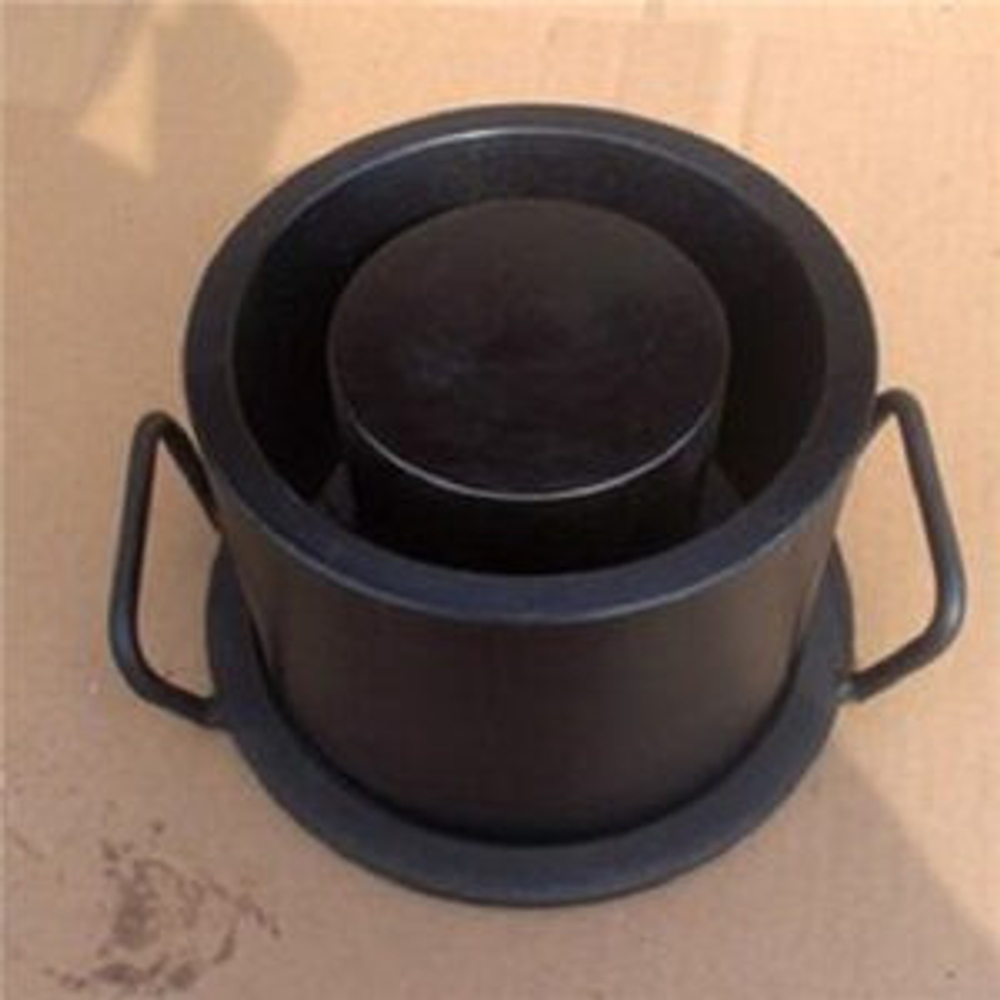

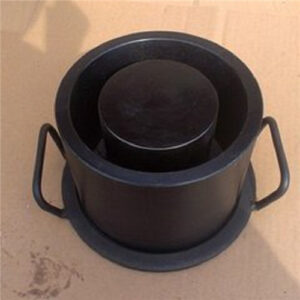

Aggregate Crushing Value apparatus BS 812

Standards: BS 812-110, 812-111

Model: ACV-150/75

Description

The aggregate crushing value apparatus provides a way to determine the aggregates crushing strength conforms to the BS 812-110, 111 standards.

Technical specifications

For Norminal 150mm Internal diameter of cylinder:

Cylinder inner diameter: 154mm

Cylinder inner depth: 125mm

Cylinder wall thickness: 16mm

Piston diameter: 152mm

Stem diameter:100mm

Stem length: 80mm

Baseplate thickness: 10mm

Tamping rod: L600*Dia.16mm

Net weight: 30kg

Material made: all steel

For For Norminal 75mm Internal diameter of cylinder:

Cylinder inner diameter: 78mm

Cylinder inner depth: 70mm

Cylinder wall thickness: 8mm

Piston diameter: 76mm

Stem diameter:50mm

Stem length: 50mm

Baseplate thickness: 10mm

Tamping rod: L300*Dia.8mm

Net weight: 6kg

Material made: all steel
