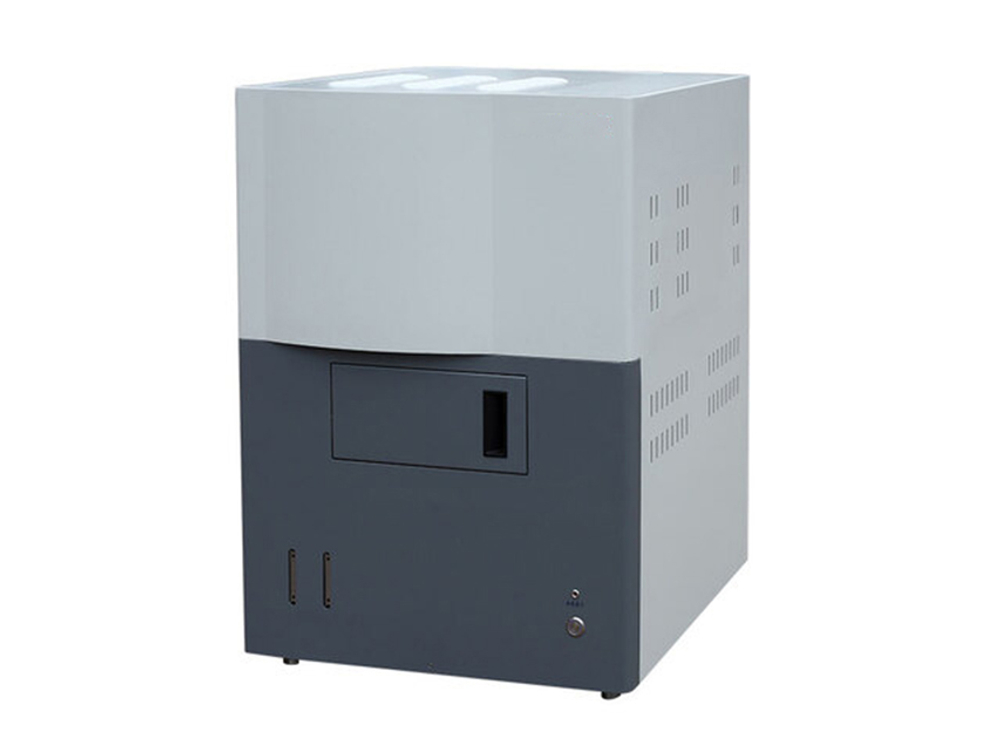

Ash fusibility tester ISO 540

Standards: ISO 540:1995

The Coal Ash fusibility tester is used to test the melting process of coal ash and other non single compounds without fixed melting point.

Features

◎ A special sample sending and transferring mechanism is adopted to complete automatic sample sending. The user only needs simple operation to complete the sample sending and sampling of the ash cone;

◎ The step motor controlled by trapezoidal speed is used to send the sample to the correct position to ensure that the ash cone is not tilted. The high-precision angle encoder is used to feed back the position of the ash cone, which can be fine adjusted at any time;

◎ Five million pixel industrial camera is used to automatically track the whole test process and present high-definition test images;

◎ The demist and dust removal device is adopted to ensure that the lens is free of cleaning and improve the maintenance convenience and image clarity;

◎ Five samples can be tested at the same time, and all characteristic temperatures can be automatically identified;

◎ Special heating elements and temperature resistant and thermal insulation furnace materials are used, and the maximum working temperature can reach 1650 ℃;

◎ The closed cross shaped corundum tube structure is adopted to truly meet the test requirements of multi atmosphere;

◎ New image processing algorithm is used to intelligently identify each characteristic temperature point, resulting in more accurate results;

◎ Access to the laboratory management system to backup and upload test results.
