Asphalt Wet wheel abrasion loss tester

Model: LY-0752

Description

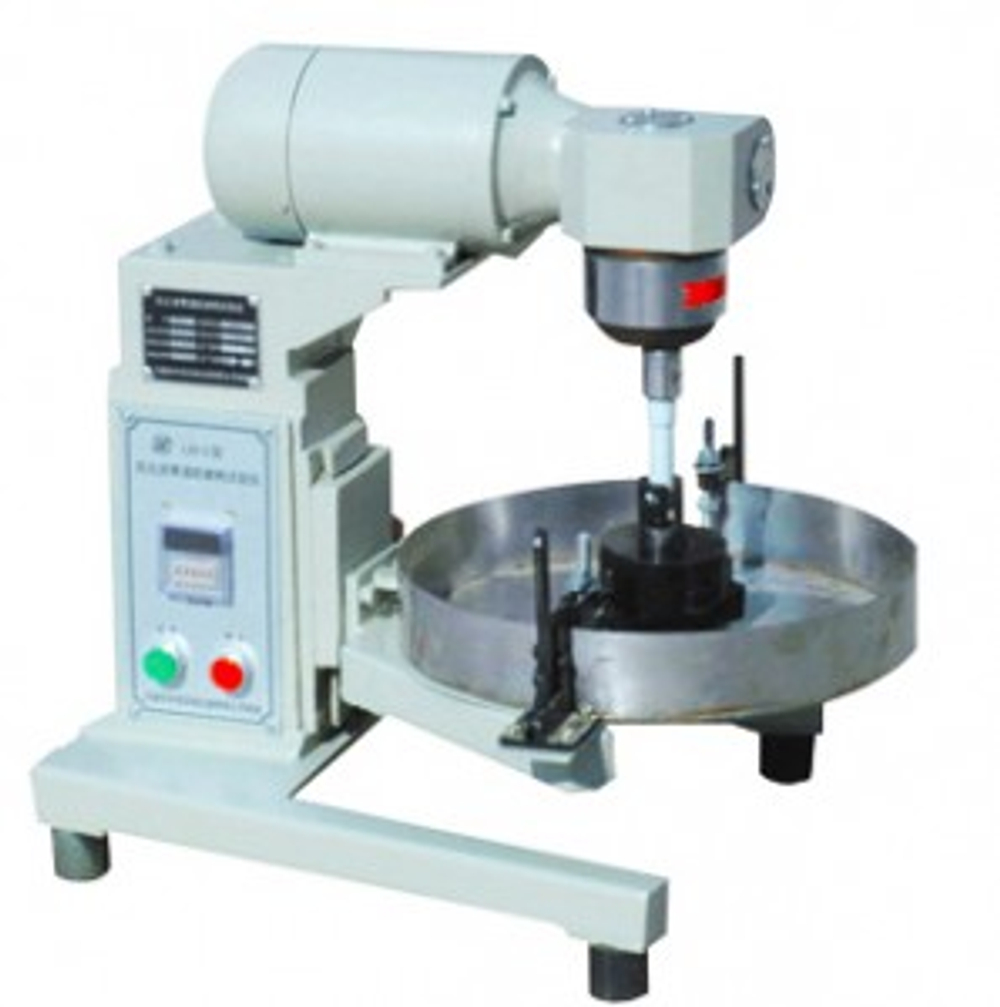

This tester is used to determine the abrasion property of emulsified asphalt slurry seal mixture, thus to determine the best asphalt content in slurry seal mixture. It complies to the JTJ052 standards. It’s kind of vey common asphalt testing instrument.

Technical specifications

1. Motor rotation speed: 1400rpm

2. Working power: 220V, 50Hz

3. Total power: 0.38kw

4. Grinding head autorotation speed: 140rpm；

5. Grinding head revolution speed: 61 rpm

6. Grinding head weight: 2.27kg

7. Grinding head rubber pipe length: 127mm

8. Timing: 5mins

9. Overall size: 600×480×845(L×W×H) (mm) 10.Machine weight: 260kg

Packing list:

1. Main machine

2. Rubber pipe

3. Template

4. Fuse 10A (Ф6×30)
