Standards
AASHTO T 134 , AASHTO T 135 , AASHTO T 136 , AASHTO T 180 , AASHTO T 99 , ASTM D1557 , ASTM D1558 , ASTM D558 , ASTM D698 , ASTM D559/559M

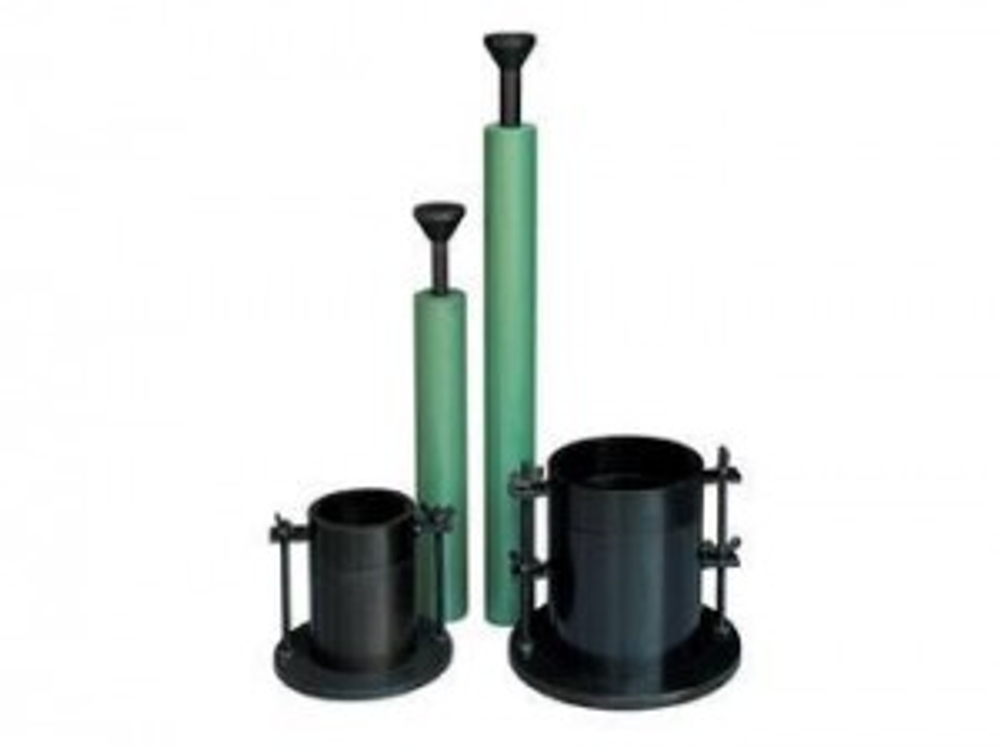

Proctor compaction hammers
The proctor compaction hammers are used for the Proctor Compaction of soil samples. The light hammer has 5.5lb (2.5kg) hammer mass with 12in (305mm) drop. The heavy hammer has 10lb (4.5kg) hammer mass and 18in (457mm) drop.
Proctor compaction molds set
The compaction molds including 4″ and 6″ two types, the 4in Soil Density Mold Sets are used when compacting soil samples for standard Proctor Compaction tests. These molds can be used alone with Soil Compaction Hammers and will also fit the mechanical compactors. Complete Mold Sets include a 4×4.584in (102×116.4mm) IDxH mold, detachable extension collar, and base plate.
The 6in Soil Density Mold Sets are used for modified Proctor Compaction tests for determining soil moisture-density relationship and can be used with soil compaction hammers and mechanical soil compactors. Complete mold sets include body, detachable extension collar, and base plate. Molds are 6in (152mm) nominal diameter, 4.584in (116.4mm) in height.
