Description

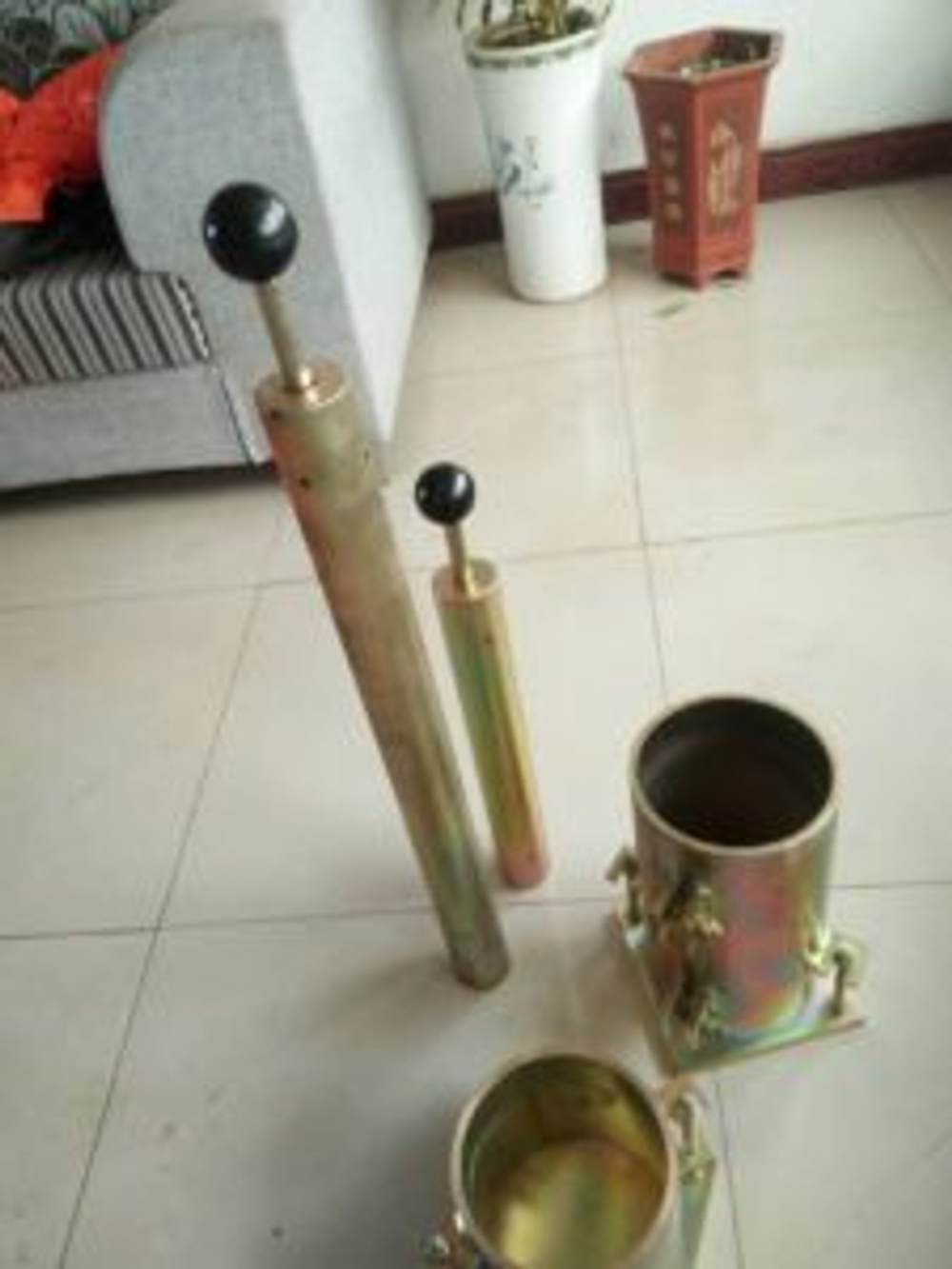

The proctor compaction apparatus is used for determining the relationship between the moisture content and density of compacted soil. The mould includes collar, mould body and base plate. The rammer construction includes a guide sleeve with vent holes, it’s kind of very common soil testing equipment.
Technical specifications
Moulds
| Type | Standard | Cap. cm3 | Int. dia. mm | Body height mm | Weight Approx. kg |
| Standard | ASTM AASHTO | 944 | 101.6 | 116.4 | 7 |
| Modified | ASTM AASHTO | 2124 | 152.4 | 116.4 | 9 |
| Standard | ASTM AASHTO | 944 | 101.6 | 116.4 | 7.5 |
| Modified | ASTM AASHTO | 2124 | 152.4 | 116.4 | 9.5 |
Rammers
| Type | Standard | Rammer dia. mm | Free fall height mm | Rammer weight kg | Weight kg |
| Standard | ASTM AASHTO | 50.8 | 305 | 2.49 | 3 |
| Modified | ASTM AASHTO | 50.8 | 457.2 | 4.54 | 5.3 |
