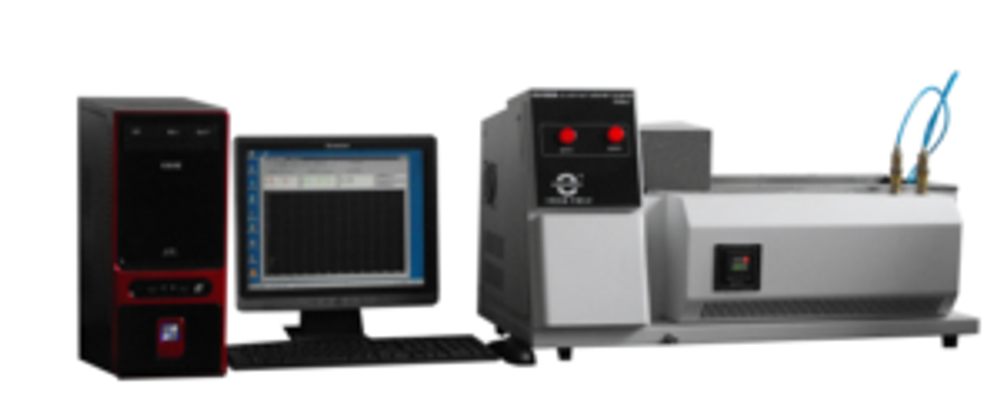

Model: HEK-R2026
This instrument is used for testing of vapor pressure of gasoline, volatile oil and other volatile petroleum products with Reid method; But not suitable for testing of the vapor pressure of liquefied petroleum gas.
Technical specifications
- Applicable standards: GB/T8017 ASTM D323 ISO3007 NFM07007
- Temperature control mode: brand PID digital display thermostat
- Temperature control accuracy: 37.8 ± 0.1 ° C
- Oscillation mode: horizontal automatic oscillation, no manual operation
- Working unit: two oxygen bombs
- Pressure correction: precision pressure regulator connected at external, equipped with offset correction inside
- Connection method: stainless steel quick connector connection, no leakage
- Power consumption: 1.5KW
- Control method: computer
Features
Adopts computer automatic control, large LCD screen displays experimental data, and the instrument automatically discriminates the result.
Made of cold-rolled steel plate, the surface with electrostatically spray treatment, corrosion-resistant and easy-cleaning
No solder joints, good appearance
Brand pressure transmitter, high display accuracy
All stainless steel inner tank water bath, no rust
Brand quick connector, no leakage, easy to operate
Windows based operation system, easy to operate, automatic shutdown after the test is finished
