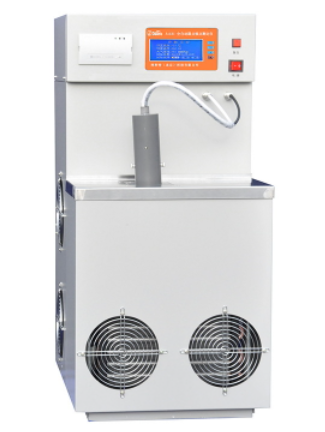

Model: SY-1121A
The automatic pour point meter is a new generation of automatic testing instrument developed and manufactured according to the standards GB/T510, ASTM D2386, GB/T3535, ASTM D97. It is suitable for determining the pour point of lubricating oil and dark petroleum products. Restrictions apply more broadly. It can be used in electric power, petroleum, chemical, commodity inspection and scientific research departments.
Features
LCD display, touch control, easy to use
Can be heated to 50°C or refrigerated to -70°C
Automatic detection, automatic printing results, good repeatability
Automatic tilt during detection, fully compliant with standards
Compressor cooling, long service life
The test method is optional, it can be tested quickly or by normal test
With fault diagnosis and other functions, it can prompt operation
Refrigeration speed and testing standards can be written according to customer requirements
Specifications
| Measuring range | Room temperature-70℃ |
| Measurement accuracy | ±1℃ |
| Resolution | 0.1℃ |
| Display mode | LCD display |
| Printer | thermal type, 36 characters, Chinese character output |
| Ambient temperature | 5℃～40℃ |
| Relative humidity | ≤85% |
| Power supply voltage | AC 220V±10% 50Hz±10% |
| Power consumption | <300W |
| Dimensions | 460mm×310mm×480mm |
| Instrument weight | 21.30kg |
