Model: QG- 200A

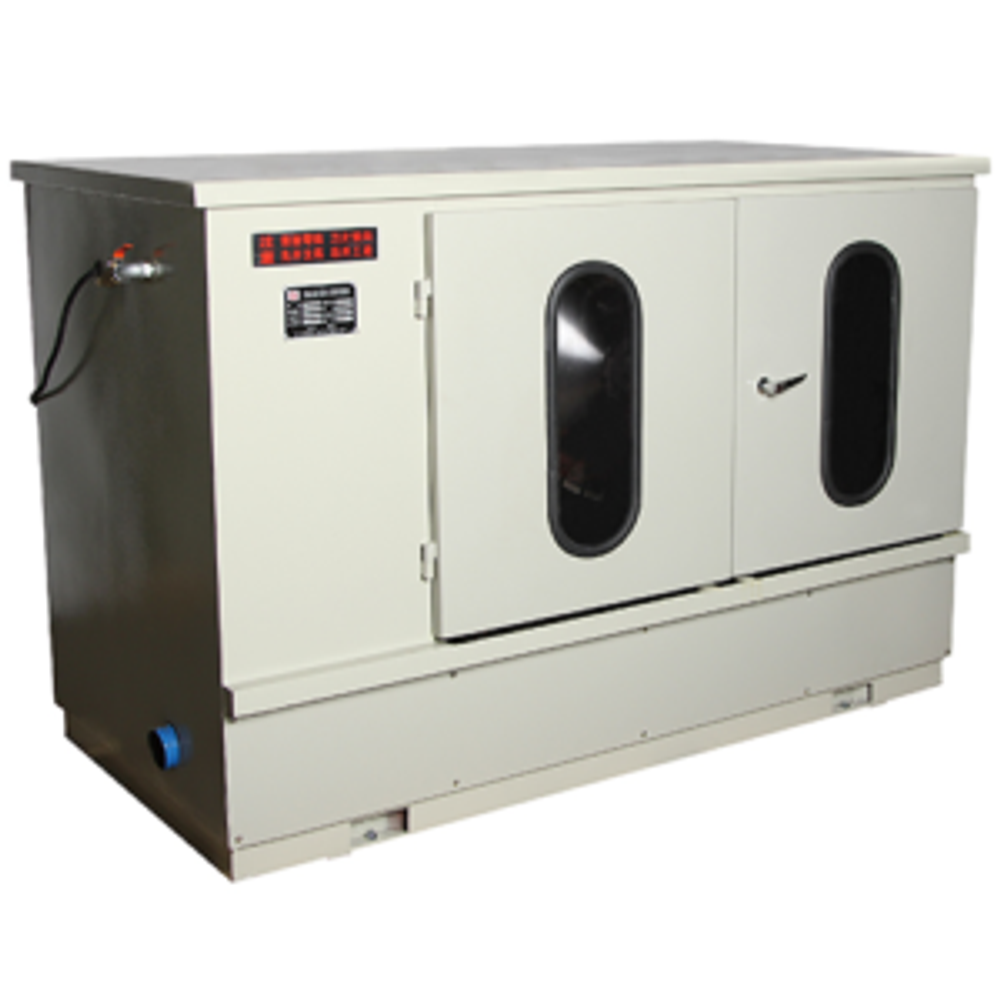

The automatic rock cutting machine adopts stepless cutting speed regulation, fully closed. It can cut rocks, concrete, soil samples, coal samples, minerals, crystals, etc. Moving blade and the worktable is stationary, when working, the workpiece is fixed and the blade moves. Can cut various shapes specimens. The machine is composed of a cutting table, a speed-adjusting motor and electrical control. The fixture design is novel, the clamping is fast and reliable, and the inner tank is made of stainless steel. Features compact in size, stable and reliable. Tap water cooling.
Technical specifications
| The largest rock sample can be placed | 170×170×350 (length) mm |
| Specimen specifications that can be cut | 50×50×50; 100×100×100; 150×150×350; (length) mm, etc. (also can be customized according to requirements) |
| Diamond saw blade | φ500mm |
| Working form | Double knife automatic cutting |
| Cutting line speed | 33-45m/min |
| Longitudinal working speed | 6~60mm/min |
| Main motor power | 4KW |
| Speed adjustment range | 0~1250 rpm. (Stepless speed regulation) |
| Motor | Moisture-proof, shock-proof and explosion-proof copper core wire motor |
| Working time | Continuous |
| Size | 1.5*1*1.1m |
| Weight | 450Kg |
