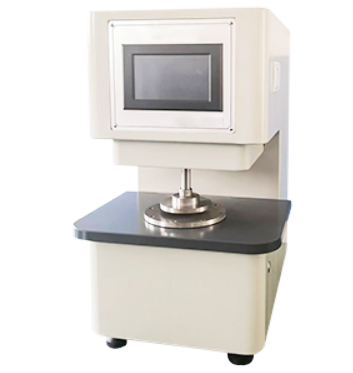

This instrument is specially used for measuring the thickness of geosynthetics and related products under different pressures and specified times.
Standards
JTG E50, ISO 9863, GB/T 13761, ASTM D5199
Features
Microcomputer control, large LCD screen display and output, and test results print out.
Imported sensors are used for measurement, with an accuracy of up to two thousandths and no manual error.
Test pressure parameters 2KPa, 20KPa, 200KPa, etc. can be set arbitrarily.
The measuring head rises and falls automatically during the test, effectively avoiding the system error caused by human factors
Display the maximum, minimum, average and other analysis data of the measurement results in real time to facilitate the user’s judgment
Specifications
| Display | 7.8 inch touch screen display, Chinese and English operation interface, remote upgrade and maintenance. |
| Weight load | 0-1000N |
| Data collection | automatic statistical analysis of maximum, minimum and average values |
| Data storage | 1000 groups, automatic storage, power failure automatic memory function |
| Data output | historical data can be quickly viewed and printed |
| Software | special test software for online operation |
| Presser foot area | 25cm (circular diameter: Ф 56.42 mm) or other areas |
| Voltage stabilization time | 10S 20S, 30S, 40S, 50S |
| Test unit | mm, um, cm, |
| Test pressure | digital setting (2 ± 0.01KPa; 20 ± 0.1KPa; 200 ± 0.1KPa and other pressures) |
| Test thickness | 0-25mm |
| Resolution | 0.001mm |
| Measurement mode | single point measurement or multi-point measurement |
| Power supply voltage | AC220V ± 10% Power: 100W |
| Overall dimension | 680* 520*810mm |
