Model: PH-20F
Description

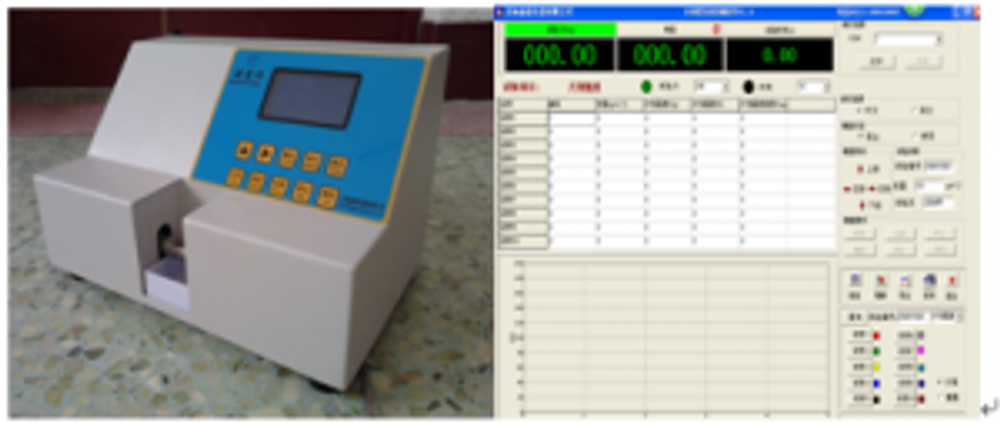

This automatic grain hardness tester is kind of professional instrument to test the grain and pellets hardness, microprocessor control, LCD display, it can calculate the max value, minimum value, average value. It’s kind of common testing equipment in testing laboratory.
Features
Highly automatic, fast data acquisition, automatic measurement, intelligent judgement, powerful & reliable data processing function, automatic reset, easy operation, easy operation, stable performance
Full automatic measurement, intelligent calculation, can be equipped printer to print test report
Powerful function, compact size, nice appearance, easy maintenance
Precision load cell guarantee fast & accurate data acquisition, high measuring accuracy
Technical specifications
Max measuring force: 20KG（40kg）
Max measuring diameter: 30mm
Minimum measuring diameter: 2mm
Measuring accuracy: ±0.1%（kg）
Resolution: 0.01Kg（0.098N）
Input power: 15W
Power supply: 220V±10% 50Hz
