Model: CB-1220S
Description

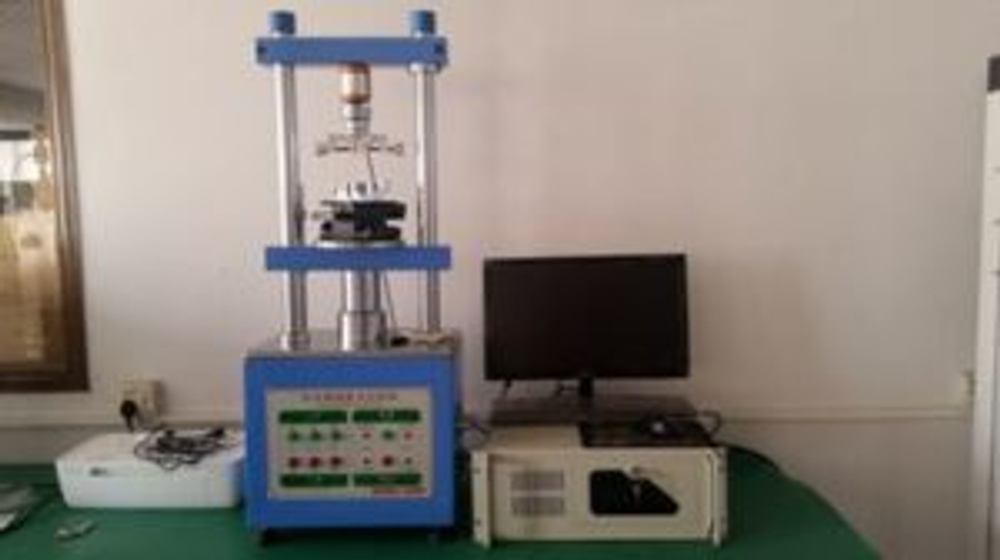

This tester is used for testing the insertion force of kinds of connectors, provided with kinds of specialized fixtures, equipped with specialized auto-align device, automatic aligning of male and female connectors;
Equipped with dynamic resistance test system, not only can test insertion force, but also can measure the dynamic resistance and draw the curve of load-stroke-resistance;
English test software
All the test data can be stored(test condition, insertion curve, tooling life curve, report)
Technical specifications
Max load: 50kg,20kg,5kg,2kg(optional). Resolution 0.01kg
Drive motor: servo motor, 220V±10%, 0.2KW/0.4KW
Transmission structure: ball screw rod
X, Y axis stroke: 0~75mm
Test rate: 0~200mm/min
Max test height: 150mm
Fine tuning distance: 0.01mm
Clamping jaw max effective width: 40mm
Column height: 1000mm
Gap between Column: 200mm
Overall dimension: 400mmx300mmx1050mm
Net weight: 65Kg
Power supply: AC 220V, 50HZ
