Model: PT-IBT
GB/T 26203-2010
TAPPI T569 pm-00《Internal bond strength (Scott type)》
Description

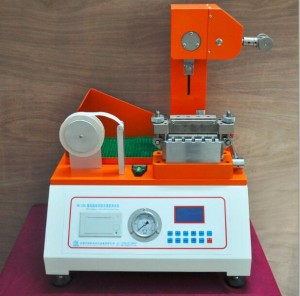

This internal bond strength tester is mainly used to test the internal bond strength of paper and paper board. This internal bond strength tester is widely used in printing and packing industry for test of multi-layer board such as case board, white paper board, grey board, ivory board.
Technical specifications of Automatic Internal Bond Tester
Sample dimension: 25.4*25.4mm
Sample clamping force: 0~400N(adjustable)
Impact angle: 90°
Resolution: 0.001lbf/in2
Release mode: full automatic
Measuring range
A degree:(20-500)j/m2, ±1j/m2
B degree: （500~1000）j/m2, ±2j/m2
C degree(optional): (1000~1500)J/M2, ±2J/M2
Unit: J/M2 , lbf/in2 interchange
Display: 3.4in LCD
Printer: built-in integrated thermal printer
Software(optional): can connect with computer, office software to process the document, A4 paper print
Overall dimension: 530*435*680mm
Working environment: (20±10)℃, humidity<85%
Net weight: 70KG
PT-IBT-A specialized sampler specifications
1. Sampling dimension: 140×25.4mm
2. Depth of parallelism of two side: <0.05mm
3. Sampling thickness: (0.1~1.0)mm
