Model: FY-2001
Introduction

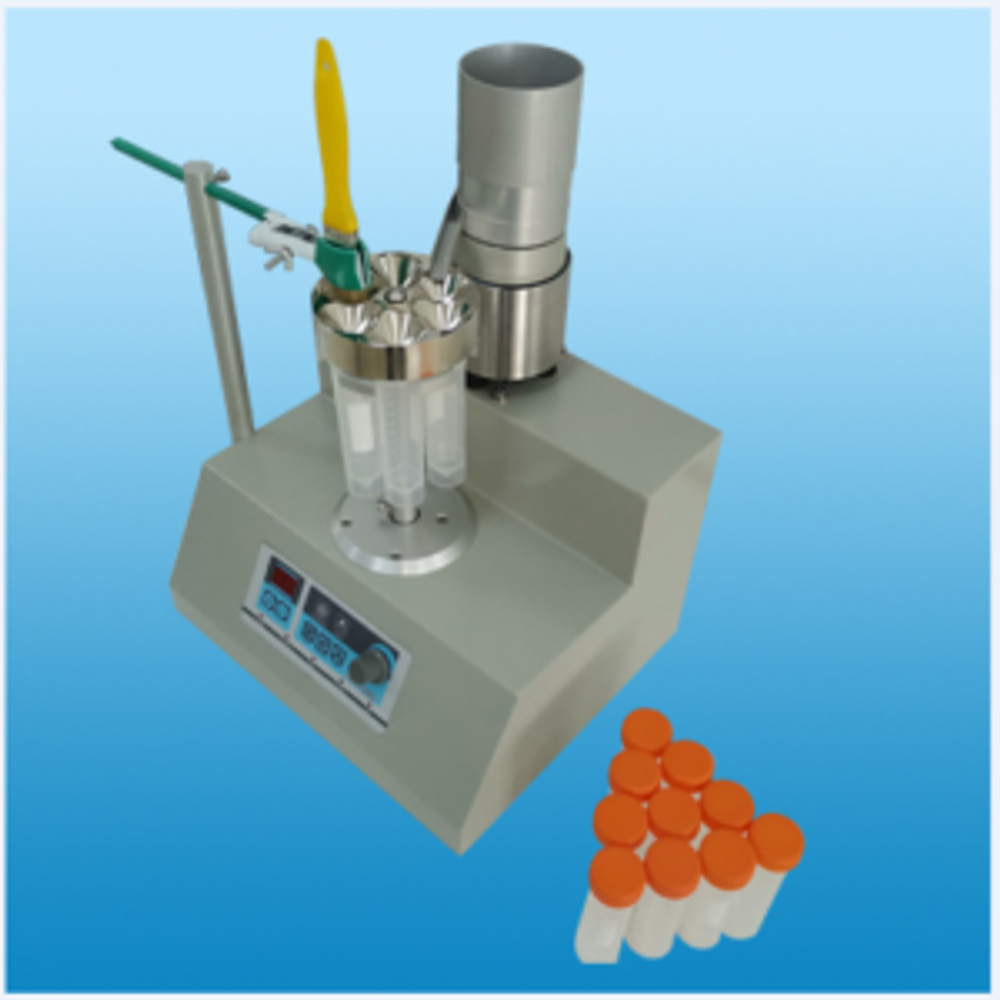

This automatic sample divider is used for division of dry powder sample in laboratory, works in vibration & rotary mode, it can divide the sample into 6, 8, 10 equal part, every part can keep the original characteristics of original sample. The divider is constructed of below parts: control panel, vibration feeder, sample receiver, sample clean device.
Features
- Automatic sample division
- Automatic adjustment of the vibration feeder amplitude
- Automatic adjustment of the sample receiver rotation speed
- Automatic adjustment of amplitude and rotation speed to reach accurate sample division
Technical specifications
| Applications | sample division, sample reduction |
| Field of application | agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals |
| Feed material | bulk materials |
| Material feed size* | ≤ 10 mm |
| Batch size / feed quantity* | ≤ 2500 ml |
| Rotary speed | 0-110rpm adjustable |
| Number of divisions | 10 (can be more, but total batch size is 2500ml and then have to be adapted container volume) |
| Time setting | digital, 1, 3, 5, 10 – 60 min / continuous operation |
| Container volume | 250 ml |
| Electrical supply data | 220 V, 50 Hz, 1-phase |
