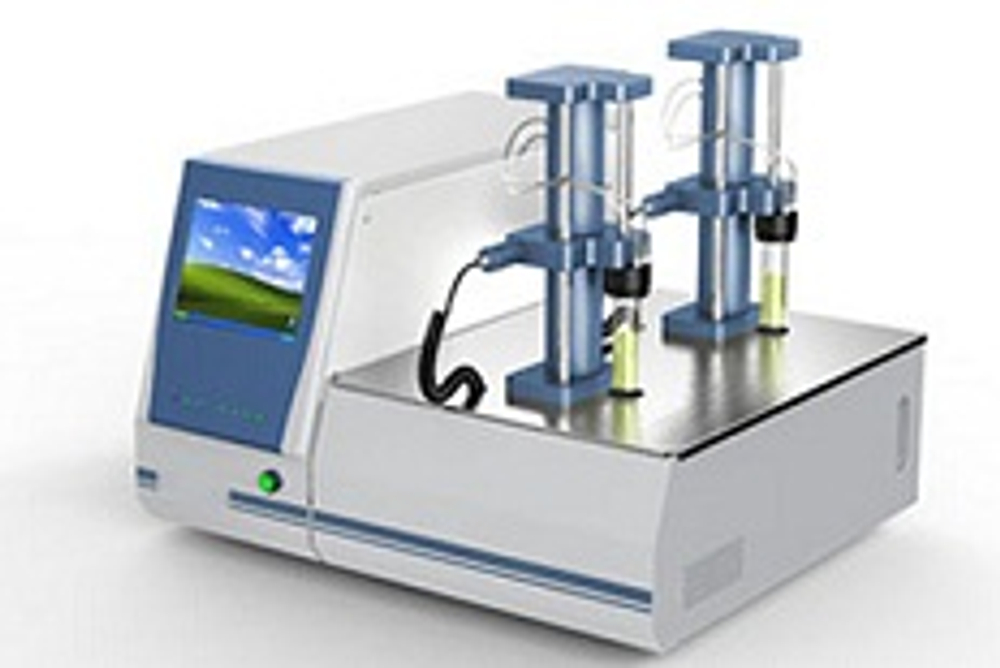

Automatic Pour point tester ASTM D97 D5950

Model: PPP110

Standards: GB/T 3535, ISO 3016, ASTM D97, ASTM D5950

Introduction

This model pour point tester is competent to test most of the petroleum products( diesel, fuel oil, lubricant). It has two test bath, they can do independent test without affect to another. Operation interface is comprised of LCD display, touch screen, metal water proof keyboard. It’s kind of highly automatic petroleum testing instrument.

Technical specifications

1. Power supply: AC220V ±10%,50Hz
2. Total power: 1000W
3. Test cool bath temperature: -51℃~45℃
4. Working temperature: 0℃Automatic Pour point tester ASTM D97 D5950 35℃( recommended 15℃~35℃)
5. Storage temperature: -20℃~50℃
6. Overall dimension: 560×720×460（mm）
7. Net weight: 25Kg
8. Test bath: two independent controllable bath
9. Cooling mode: liquid Nitrogen or outer circulating
10. Temperature measuring part: PT100
11. Display: 6.4” Colorful TFT
12. Resolution: 640×480
