Model: WKY-1A
Standard: GB/T 1346-2011

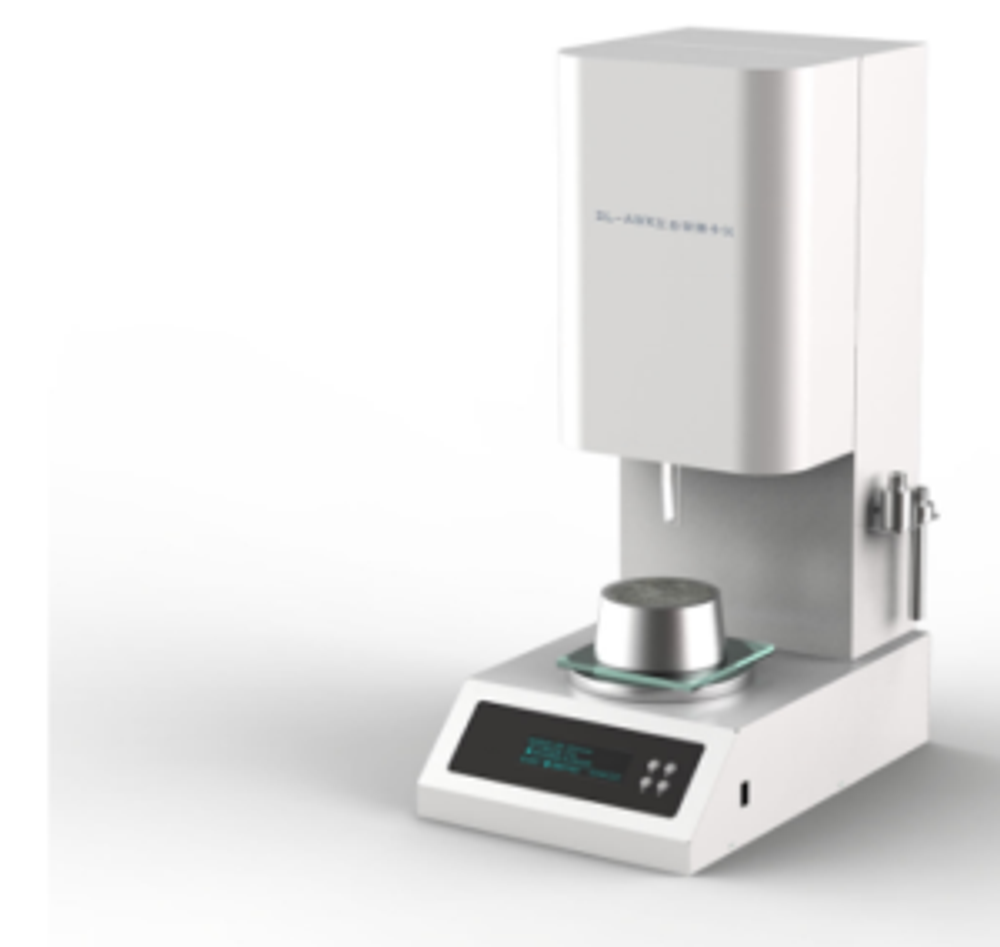

It is an automatic instrument used to test the standard consistency and setting time of cement.
Features
Automatic measurement of consistency and setting time
Automatic generation of the “sink depth against age” process curve
Unattended measurement process, autommatic-recovery of test after power supply recovery
Accurately control the settling time, sink depth deviation <0.1mm
Latest data acquisition technology, high stability, durability, reliability
Under single term test mode, directly display sink depth and age, no need human recording;
Under “setting time automatic measure” mode, only need to input the water feed time, can automatically calculate the initial setting, final setting time, less labor work for operators;
Under “setting time automatic measure” mode, can directly check the curve of sink depth, easier for setting time judgement and research work of test sample;
OLED screen, easier operation
Longer tooling life, less maintenance work
Screen lightness adjustable, when in standby, automatic enter energy-saving status
Softwar automatic update
USB-HID transmission mode, no need to install drive, support USB 2.0, easier for data output;
When the sink value is for initial setting or final setting point, instrument will redo to avoid error;
Clock will record the test time of each sample, leap year automatic adjustment;
Specifications
Consistency rod effective length size: L(50±1mm)*D(10±0.05mm)
Setting rod effective size: (50±1mm)*(1.13±0.05mm)
Consistency & setting rod weight: 300±1g
Test mold size: height 40±0.2mm, inner dia. 65±0.5mm/75±0.5mm
Glass plate thickness: 4.5±0.2mm
Power supply: AC 220V, 50HZ, 150W
Storage capacity: 8M, 999pcs
Work conditions.: 5 -40℃, <=95%RH
Net weight: 10kg
