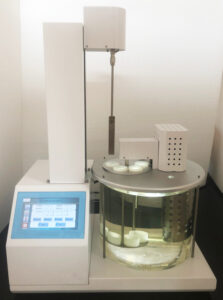

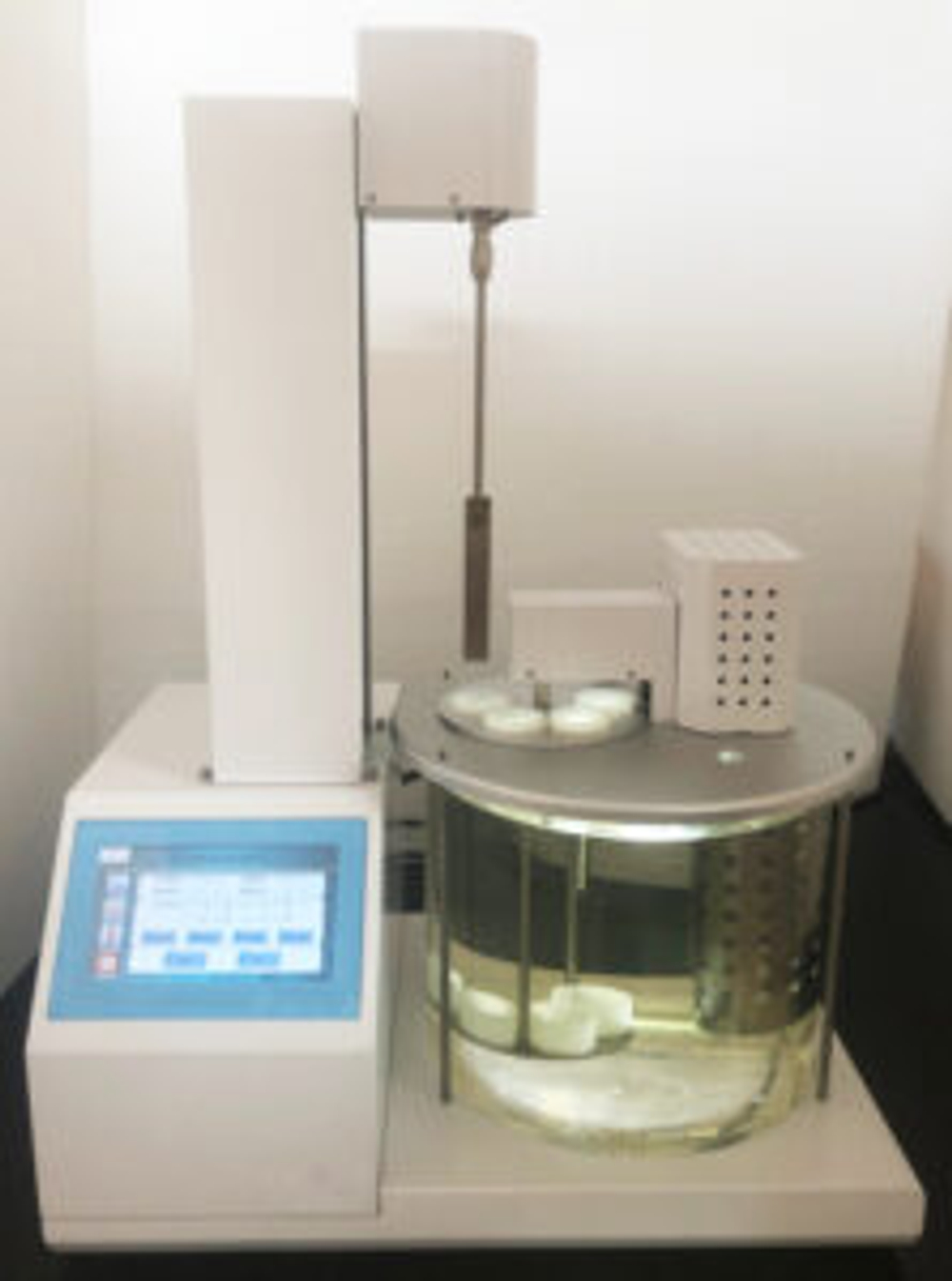

Automatic Water Separability Tester ASTM D1401

Model: SY-7305C

Standards: GBT 7605-1987, GB-T 7305-2003, ASTM D1401

The oil test equipment is used to determine the water separability of petroleum Synthetic fluid.

Features

1. 7-inch HD touch screen, easy operation, four test channels for higher work efficiency.
2. Using high-precision temperature control technology, the temperature control accuracy can reach plus or minus 0.01 degrees Celsius.
3. High-performance MCU controller, high stability and reliability.
4. Can work continuously for a long time
5. With liquid level protection function, will automatically stop heating when the liquid level is lower than a certain level
6. The lifting mechanism adopts a precision sliding table with accurate positioning and low noise.
7. Use a step motor to accurately position the sample position and automatically switch the sample position, no need manual operation.

Specifications

1. Temperature range: room temperature~100°C, accuracy ±0.01°C.
2. Temperature sensor: German A-grade Pt100 stainless steel probe, built-in temperature correction, reliable detection results.
3. Heating method: electric heating unit, the maximum heating power is 1000 W.
4. Display: 7-inch industrial color touch screen.
5. Temperature correction: 0-20 free adjustment.
6. Power source: AC220V 50Hz. Maximum power 1500 W.
7. Operating environment temperature: 10~35℃.
8. Storage temperature: 0~50℃.
