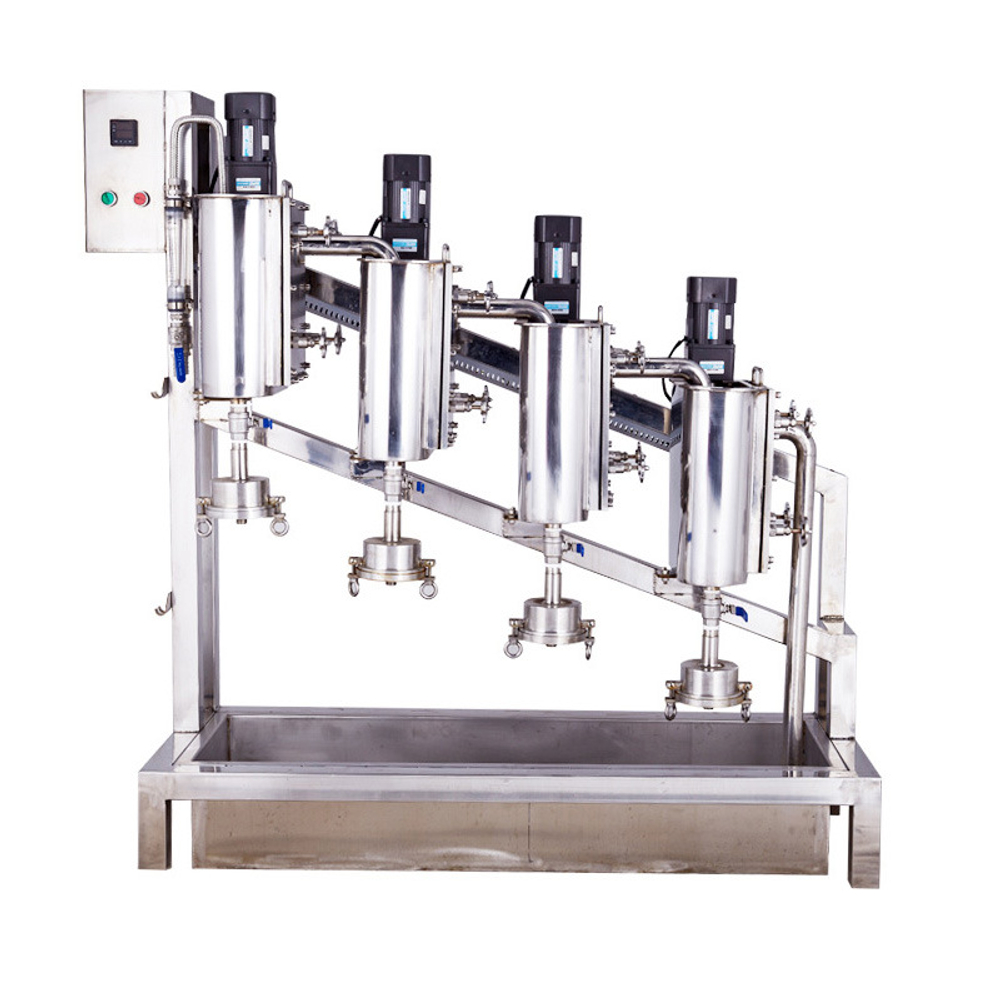

The Bauer McNett fiber classifier is an equipment used in the pulp and paper laboratory to determine the weight average fiber length of pulp fibers using the screening method. Used to measure the proportion of fibers of different lengths in pulp and grasp the distribution of fibers of various lengths in the pulp. This machine complies with the screening experimental method specified in GB/T2678.1-1993, as well as the screening method specified in TAPPI T2 33cm-95, and meets the experimental method of Scandinavian SCAN M6 (10g sample, 15min water flow, 10L/min flow rate).
Specifications of Bauer McNett fiber classifier
| Sieve classification number | Level 4 |
| Sieve mesh | (Factory selected medium length fiber): Tyler sieve size 14 mesh, 28 mesh, 48 mesh, 100 mesh |
| Sieve capacity | 10 liters (volume of a single classifier) |
| Mixer speed | (580 ± 40) r/min |
| Water flow | 2-18L/min adjustable (adjusted according to the standard used in the experiment) |
| Screening time | 0~9999min adjustable (according to the standard section used in the experiment) |
| Main materials | 304 stainless steel |
| Overall dimensions | 1780mmLX520mmW X1680mmH |
| Net weight | 130Kg |
| Water source | Continuous |
| Power supply | 240W/380V |
| Sieves | Long fiber Tyler sieve numbers: 10 mesh, 14 mesh, 28 mesh, 48 mesh. Medium length fiber, Tyler sieve size (factory selected) 14 mesh, 28 mesh, 48 mesh, 100 mesh. Short fiber, Tyler sieve size: 28 mesh, 48 mesh, 100 mesh, 150 mesh, or 200 mesh. |
