Model: ETNJ-10
Description

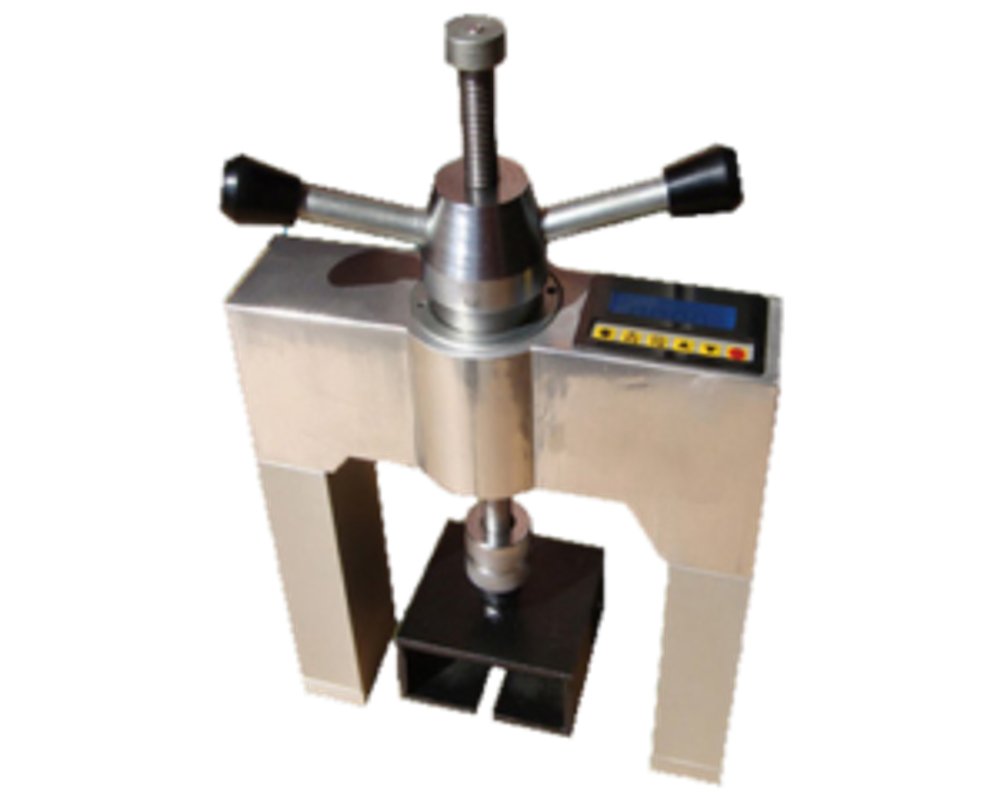

This bonding strength tester is used to test the bonding strength of rivet, heat-insulation material, tile, the tester is comprised of test stand, load cell, digital pressure gauge, test accessories, it’s kind of common construction non destructive test equipment.
Features
◆ Integration design, digital pressure value display
◆ Door type for big travel
◆ Special alloy made
◆ Peak value maintain and data storage function
◆ LCD display, low power consumption
◆ Hi-speed USB communication port, professional analysis software( optional)
Technical specifications
Max. pull out force: 5KN-10KN
Pull out travel: 60mm
Error: <2%
Battery: 4.2V rechargeable battery
Net weight: 1.8kg
Standard configuration
1.Main machine
2.ф3/ф5/ф8 rivet pullout block, 1pc each
3.standard block: 100X100, 3pcs( hanging type), tile pullout block is optional part
4.recharger: 1pc
5.connecting cable: 1pc
6.carrying case: 1pc
7.Operational manual, certificate, warranty card, 1pc
8.Application software
