Model: HB-3000
Standards: ASTM E10
Description

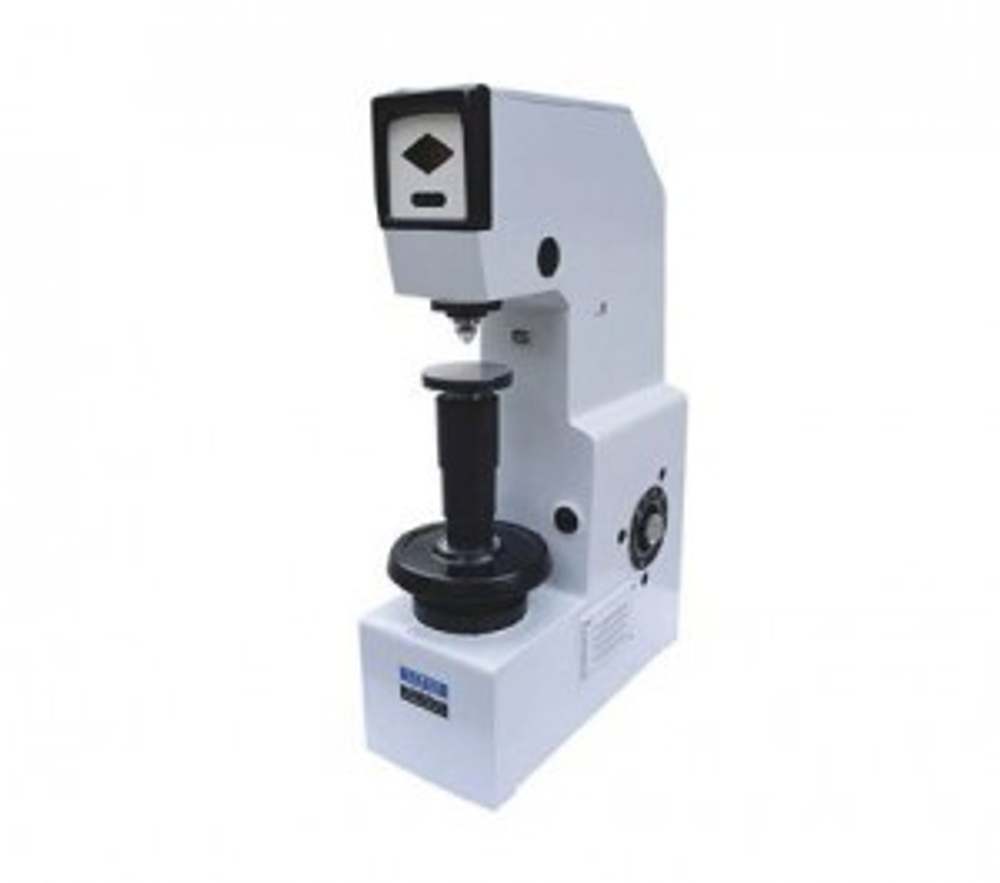

This type Brinell hardness tester can test the Brinell hardness of unquenched steel, cast iron, non-ferrous metal, bearing alloy material. It’s kind of common material hardness tester.
Features
Good rigidness, accurate, durable, high efficiency
Mechanical change-over switch
Micro-scope test system
Technical specifications
Test range: 8-450HBS, 8-650HBW
Test power: 1.839, 2.452, 7.355, 9.807, 29.42Kn(187.5, 250, 750,1000, 3000Kgf)
Specimen allowed Max height: 230mm
Pressure head to wall distance:120mm
Power supply: AC 380V
Overall size: 700 x 268 x 842mm
Weight: 210kg
Main accessories
Large platform:1pc
Steel ball pressure head:Φ2.5,Φ5,Φ10mm, one for each
Small platform:1pc
Standard Brinell hardness block: 2pcs
V type platform:1pc
20 times reading micro-scope:1set
