Описание

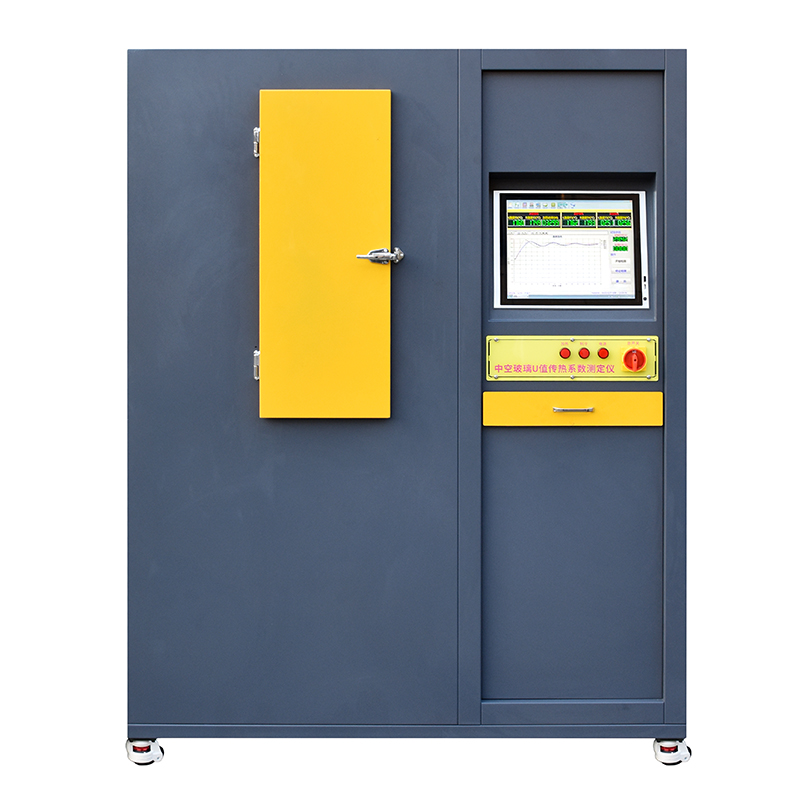

Model: JC-G-CR01
GB/T 22476-2008, G/T 10294-2008, ISO 10291, ISO 10292
This tester uses the guarded hot plate method to measure the U value (thermal transmittance) of the steady-state insulating glass. This tester is used to characterize the heat transfer performance of parallel double-layer or multi-layer insulating glass.
Specifications
| Specimen size | 800mm*800mm*H（10~110）mm |
| Measuring range of heat transfer coefficient | （0.25-4.5）W/m²·k |
| Measuring accuracy of heat transfer coefficient | ±3% |
| Repeatability of heat transfer coefficient measurement | ±1% |
| Cold plate temperature measurement range | （-5~40）℃ |
| Hot plate temperature measurement range | 10-80℃ |
| Temperature measurement value of heat transfer coefficient tester | Cold plate Temp.：2.5℃ hot plate Temp.：17.5℃ |
| Temperature resolution | 0.01℃ |
| Supply voltage | 380VAC, 4.5KW, 3phase 5 wire with earthing wire |
| Test room temperature | 23±2℃, 40%-60%RH |
| Machine dimensions | 1470*910*1940mm |
