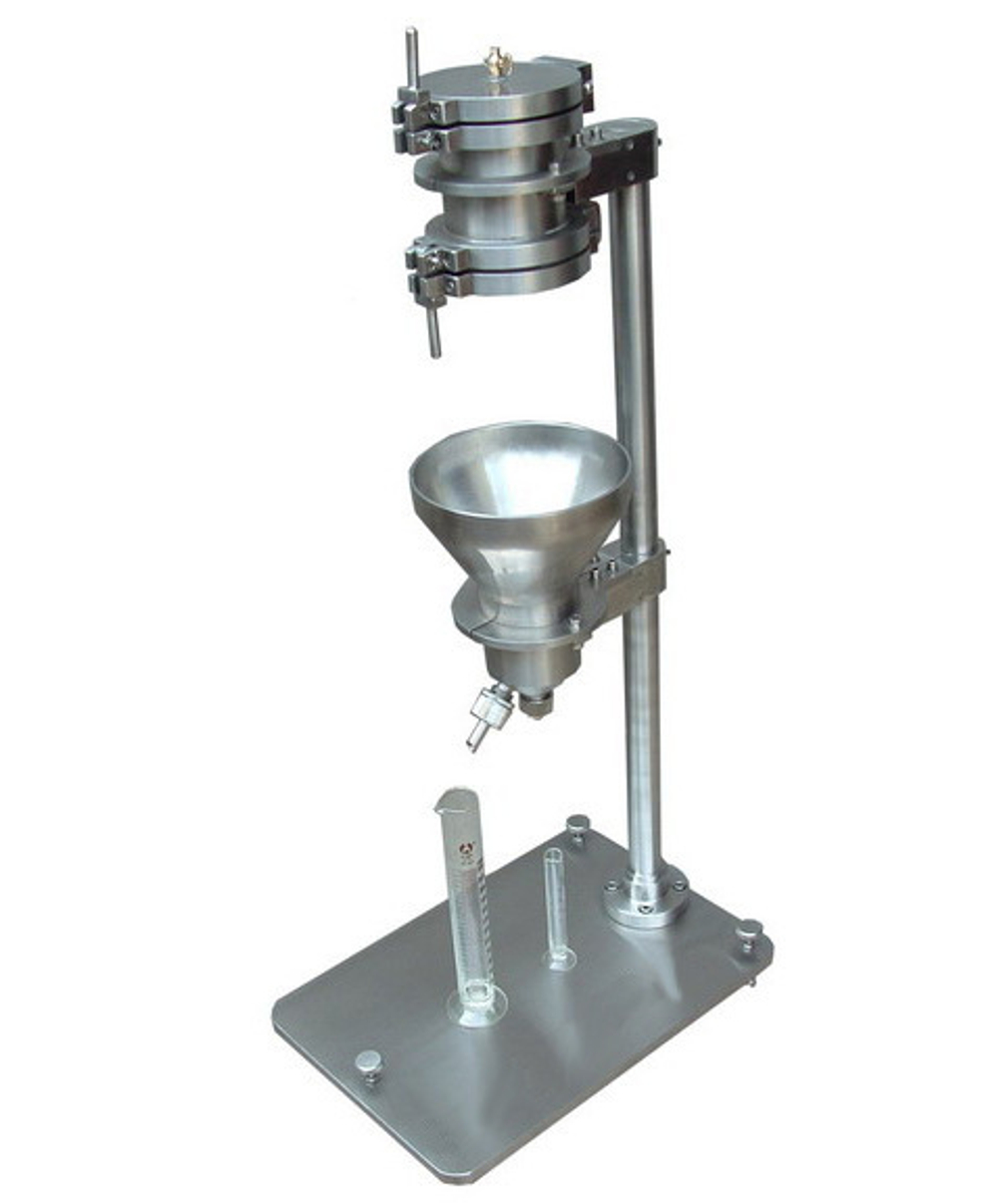

Canadian standard freeness tester ISO 5267/2 TAPPI T227

The Canadian Standard Freeness Tester is used to determine the rate of drainage of a dilute pulp suspension and express it in terms of freeness.

Model: ZS-CSF

Standards

TAPPI T227, ISO 5267/2, AS/NZ 1301, 206s, BS 6035 part 2, CPPA C1, and SCAN C21;QB/T1669-1992

The Canadian Standard Freeness Tester is widely used in the inspection of the pulping process in the papermaking industry, the formulation of the papermaking process, and the various paper pulping experiments of scientific research institutes. It is an indispensable measuring instrument for the study of pulping and papermaking.

Specifications

1. Application range: pulp, composite fiber
2. Standard size: length 300 mm × height 1120 mm × width 400 mm
3. Measuring range: 0~1,000CSF
4. Capacity of round container: 1000ml
5. The capacity of the lower cone container: 23.5±0.2ml
6. Tilt degree of main cone container: 29±5
7. The height from the bottom of the funnel to the overflow level: 50.8±0.7mm
8. Aperture of drying plate net: Dia.0.5mm
9. Net Weight: 53kg
