Model: LCT-3
Description

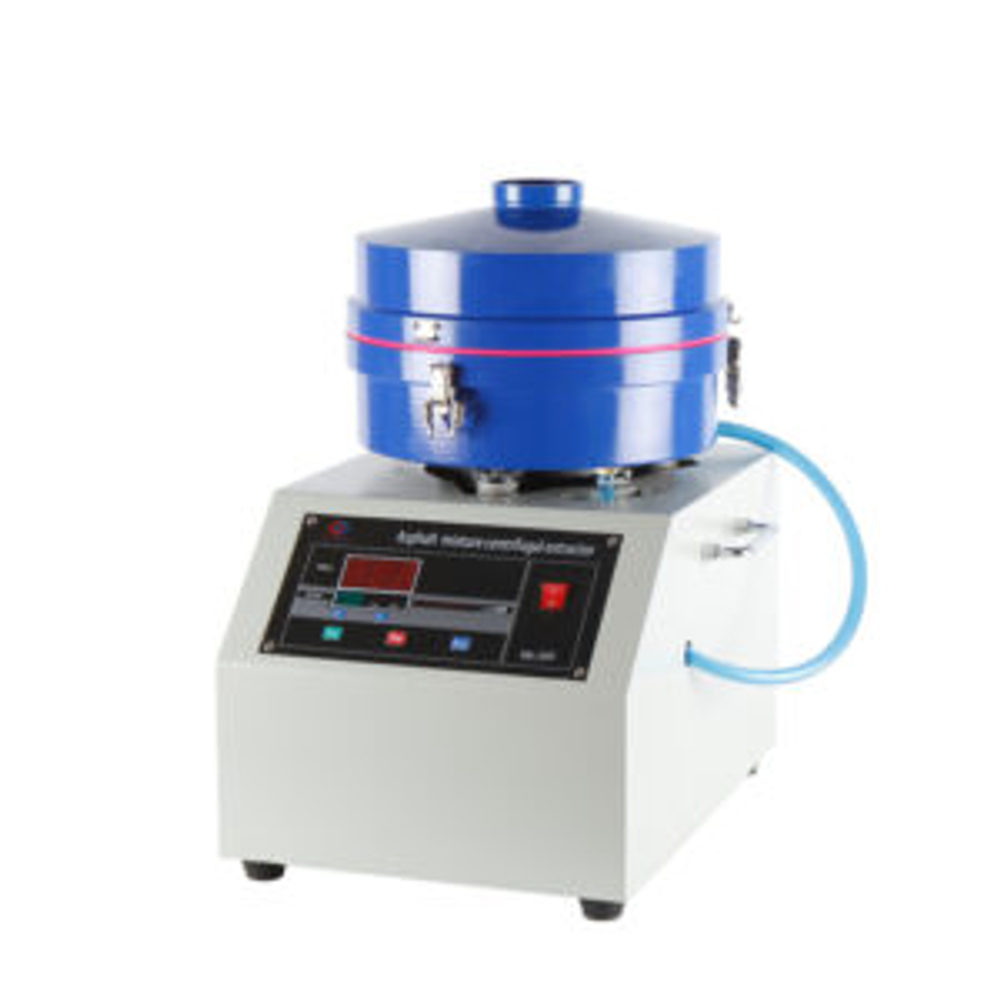

This Centrifuge binder extractor is used to determine the bitumen content in bituminous mixtures by centrifugal method. It’s widely used in road engineering supervision, asphalt mixture plant.
Features
It’s made of high-quality thicken alloy aluminum container after polish work, it’s equipped with stainless steel centrifugal shaft & encloser.
The specimen container, centrifugal separator is made with high precision machining process, and they are calibrated in balance.
The apparatus has multi-step start, which guarantees stable test performance.
This apparatus features high separation speed, easy operation, stable working performance, light weight, low noise, easy maintenance
Technical specifications
Rated rotation speed: 3000r/min
Working power supply: AC 220 V±10%, 50Hz
Capacity: 1500g/3000g
Timing selection: 40,60,80,99s
Total power: 550W
Ambient temperature: -10℃~35℃
Relative humidity: ≤85%
Weight: 45Kg
Overall size: main machine: Ф365mm×400mm(Base*H)
Control cabinet: 200mm×120mm×100mm(L*W*H)
