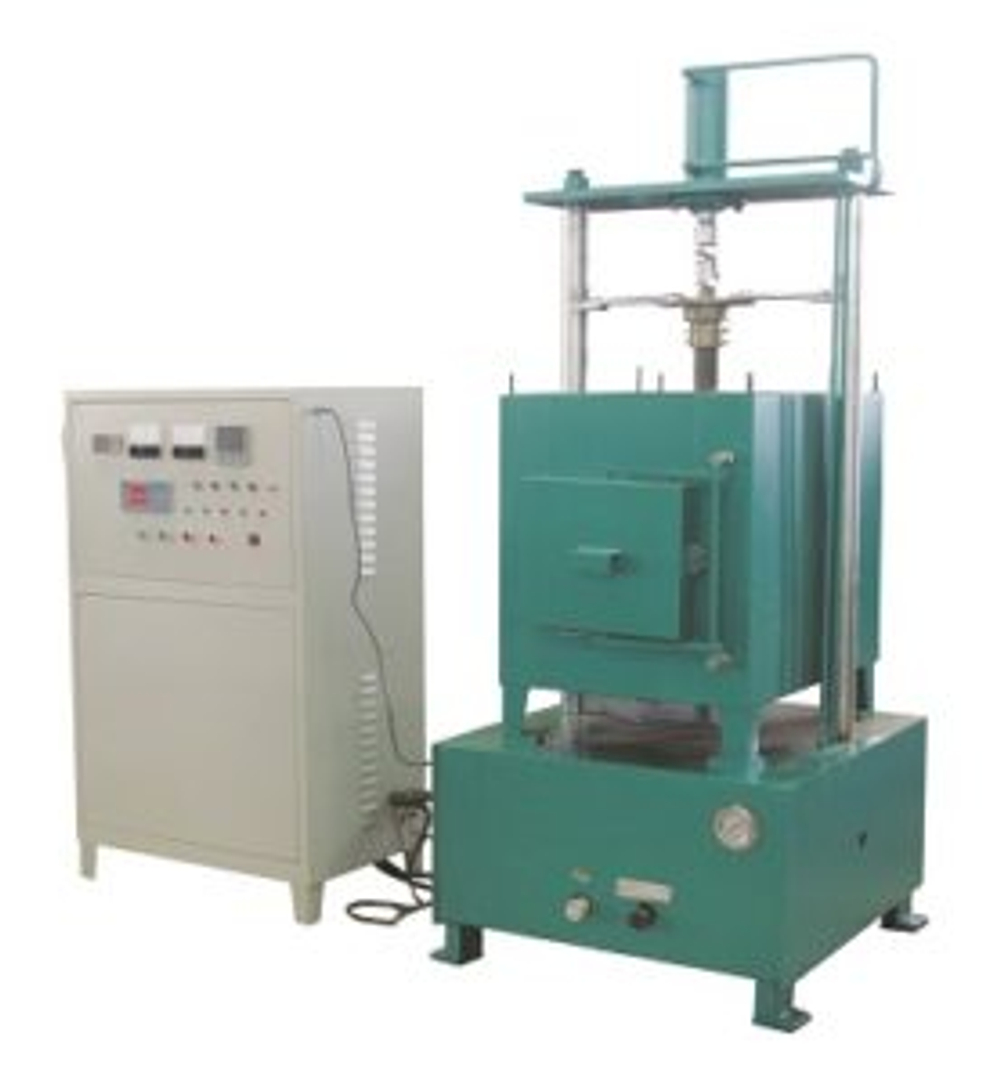

Ceramic High Temperature Bending Tester

Model: GKZ-20

Introduction

This tester, which meets GB3002-82, GB/T13243-91, YB/T5201-93, is applicable to high temperature flexural and compressive test for refractory products, carbon-containing refractories, dense refractory castables, ceramic rolls and other ceramic and silicate products. It can test 3~4 samples at a time. Controlled by MCU, it’s hydraulically loaded, with features of automatic test, simple structure, stable force, convenient maintenance, and accurate & reliable data.

Technical Specifications

1. Test Temperature: 1350 °C or 1600 °C, controlled by computer program.
2. Specimen Size Range: 120/20/10 (length / width / height) × 4 ( can be customized according to customers’ requirements).
3. Maximum Test Force: 20000N
4. Hydraulic Loading System: adjustable speed and pressure, automatic sample feeding.
5. Computer processed data.
6. Power Supply: AC380V, 50HZ, 12kw.
