Model: CT-ZCY-6/8/10
Standards: GB/T3810.2-2016/ISO 10545-2-1995
Description

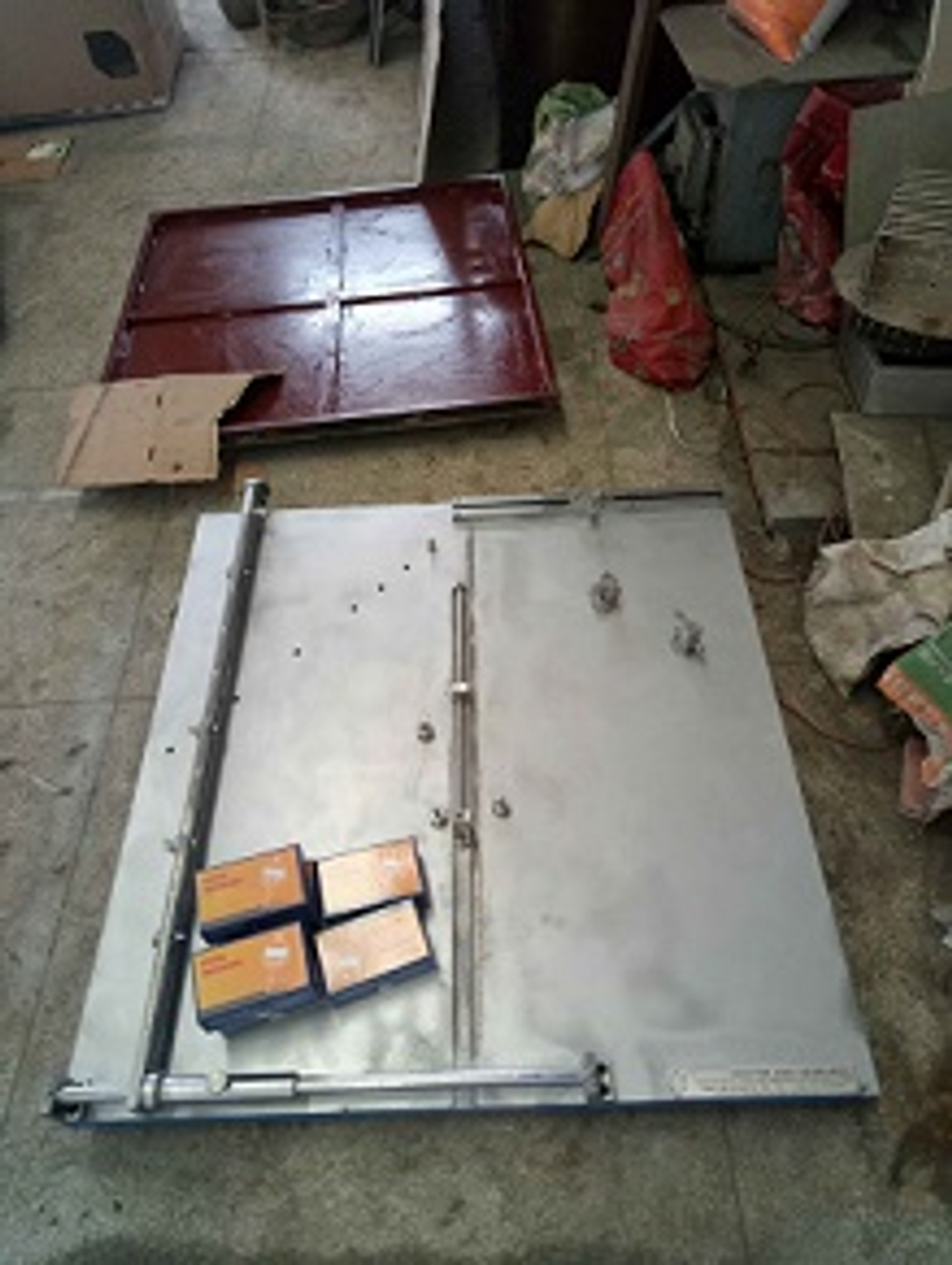

This tile comprehensive tester is widely used for inspect the the edge straightness, squareness, smoothness of ceramic tiles, it’s kind of common ceramic tile testing equipment.
Technical Specifications
Measuring accuracy: ±0.01mm
Measurement range: 40~1000×1000
Standard plate optional
Digital gauge optional
Working principle
The tester is comprised of supporting plate, mobile left holder and right holder to form a square coordinate, there are 3 supporting pin who has equal height and a standard plate to test, then adjust the gauge to proper position and record the data, then use tile to replace the standard, test the 6 index. The left and right holder can center measuring holder can move on the plate to form different space coordinate to adapt different size tiles.
