Model: TCY-1
Standards: ISO10545-5:1996, GB/T3010.5-2016

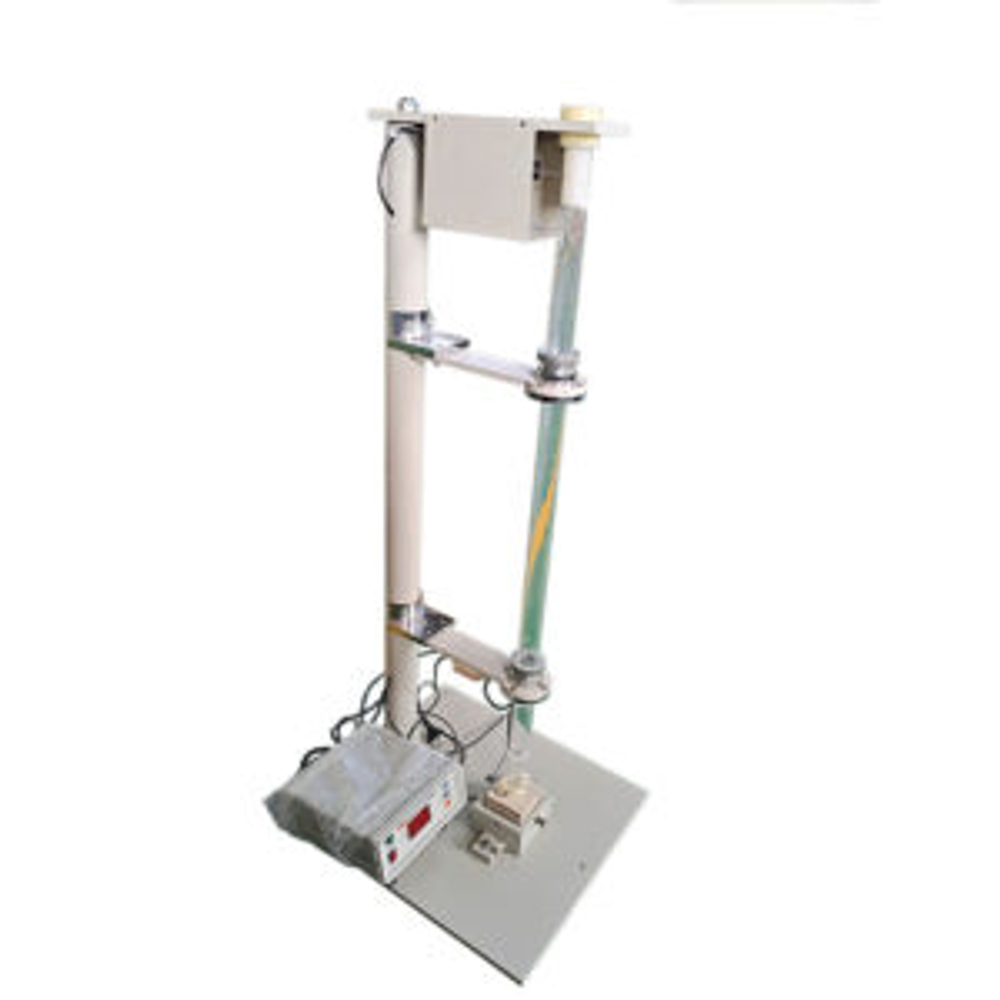

The ceramic tile impact tester is used to test the recovery index of ceramic tile so as to know the impact resistance of the tiles.
Specifications
Ball drop height: 1m
Steel ball size：dia.(19±0.05)㎜ chrome steel ball, 2pcs
Time measure accuracy:±1ms
Structure & principle
The tester is constructed of steel base, vertical steel frame with hanging electromagnetic block, 1pc guide tube, sample support
The sample is fixed at a position where the steel ball can justly impact on the central position of tile, the space between test tube and the surface should less than 9mm;
Electronic timer is used to record the interval between first impact and the second impact, which is measured by sensor, and the interval will be read on the timer.
