Описание
Description

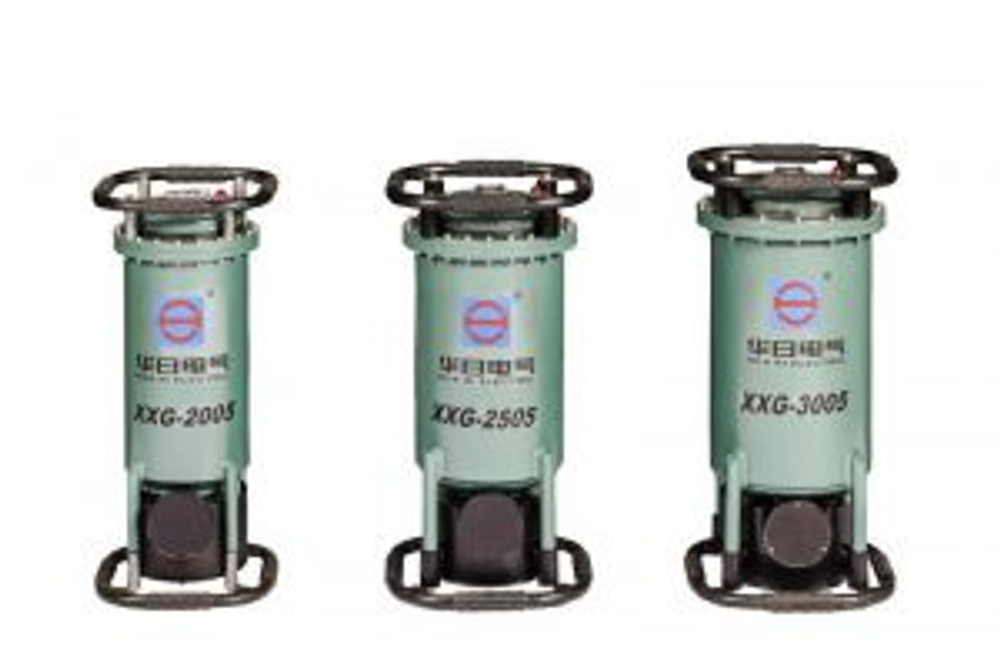

The X Ray flaw detector uses the penetration and attenuation characteristics of X ray thus to detect the flaw of different objects, it can detect metal and nonmetal materials, it mainly detects the volume defects such as stomata, slag, Incomplete welding etc. The X ray flaw detector is comprised of X Ray generator and controller, it’s easy and safe in operation.
Technical specifications
| Specs. | XXG-160 | XXG-200 | XXG-250 | XXG-300 |
| Voltage regulating range(kv) | 70-160 | 120-200 | 150-250 | 170-300 |
| Tube current(ma) | 5 | 5 | 5 | 5 |
| Focus size(mm)IEC336(normal) | 1.5×1.5 | 2.0×2.0 | 2.0×2.0 | 2.5×2.5 |
| Focus size(mm) IEC336(imported tube) | 1.5×1.5 | 2.0×2.0 | 2.0×2.0 | 2.5×2.5 |
| Work mode | 1:1 | 1:1 | 1:1 | 1:1 |
| Input power (kva) | ≥2.0 | ≥2.5 | ≥3.6 | ≥3.6 |
| Radiation angle(normal) | 40 | 40 | 40 | 40 |
| Radiation angle (high quality type) | 40 | 40 | 40 | 40 |
| Cooling way | forced air cooling | forced air cooling | forced air cooling | forced air cooling |
| Insulation gas | SF6 | |||
| Insulation gas work pressure(Mpa) | 0.35~0.45 | |||
| Penetration thickness(mm) | 19 | 29 | 39 | 50 |
| Generator size(mm) | 200×200×650 | 285×285×620 | 330×330×640 | 330×330×700 |
| Generator weight(kg) | 18 | 21 | 31 | 38 |
| Controller weight(kg) | 12 | 12 | 12 | 12 |
| Specs. | XXG-350 | XXG-250A | XXG-300A | XXGH-250 |
| Voltage regulating range(kv) | 170-350 | 150-250 | 170-300 | 150-250 |
| Tube current(ma) | 5 | 5 | 5 | 5 |
| Focus size(mm)IEC336(normal) | ———— | 2.0×2.0 | 2.5×2.5 | 1×2.0 |
| Focus size(mm) IEC336(imported tube) | 2.5×2.5 | 2.0×2.0 | 2.5×2.5 | ———— |
| Work mode | 1:1 | 1:1 | 1:1 | 1:1 |
| Input power (kva) | ≥3.6 | ≥3.6 | ≥3.6 | ≥3.6 |
| Radiation angle(normal) | ———— | 40 | 40 | 25×360 |
| Radiation angle (high quality type) | 40 | 40 | 40 | ———— |
| Cooling way | forced air cooling | forced air cooling | forced air cooling | forced air cooling |
| Insulation gas | SF6 | |||
| Insulation gas work pressure(Mpa) | 0.35~0.45 | |||
| Penetration thickness(mm) | 65 | 39 | 50 | 37 |
| Generator size(mm) | 330×330×700 | 285×285×650 | 285×285×685 | 330×330×680 |
| Generator weight(kg) | 38 | 23 | 32 | 31 |
| Controller weight(kg) | 12 | 12 | 12 | 12 |
