Description

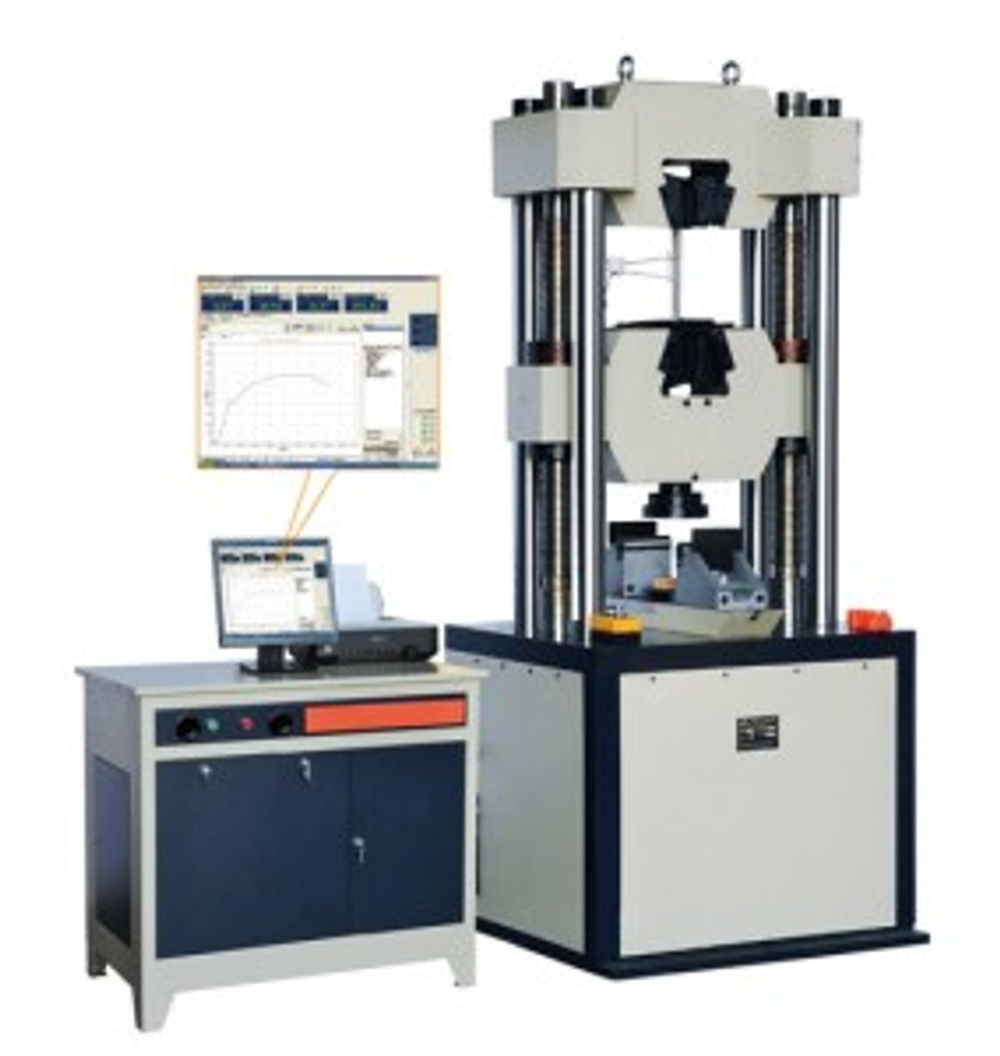

The computer display universal testing machine can be used for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control. It’s kind of common material testing machine.
Standards compliance ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards, can be tailor-made Technical specifications
| Model | UTM-300C | UTM-600C | UTM-600C+ | UTM-1000C | UTM-1000G |
| Max test load | 300kN | 600kN | 600kN | 1000kN | 1000kN |
| Test Load range | 2%~100%FS | ||||
| Test Load indicating value relative error | ≤±1% | ||||
| Load resolution | 0.01kN | ||||
| Deformation accuracy | ±0.5%FS | ||||
| Tension test space(mm) | 550 | 650 | 650 | 750 | 750 |
| Compression test space(mm) | 380 | 380 | 380 | 460 | 550 |
| Clamping mode | Hydraulic automatic clamping | ||||
| Round sample clamping diameter(mm) | Φ6~26 | Φ13~40 | Φ13~40 | Φ13~40 | Φ13~60 |
| Flat sample clamping thickness(mm) | 0~15 | 0~15(15~30) | 0~40 | ||
| Flat sample max clamping width(mm) | 70 | 75 | 75 | 75 | 120 |
| Column number | 2 | 4 | |||
| Shear sample diameter(mm) | 10 | ||||
| Upper lower platen size(mm) | 204×204 | ||||
| Bending support max distance(mm) | 450 | ||||
| Oil pump motor power(kW) | 1.1 | 1.5 | |||
| Beam lifting motor power(kW) | 0.75 | 1 | |||
| Net weight(kg) | 1900 | 2100 | 2600 | 3300 | 4000 |
