Standards: GB/T1769-1999, JB/T8763
Model: YAW-300C
Description

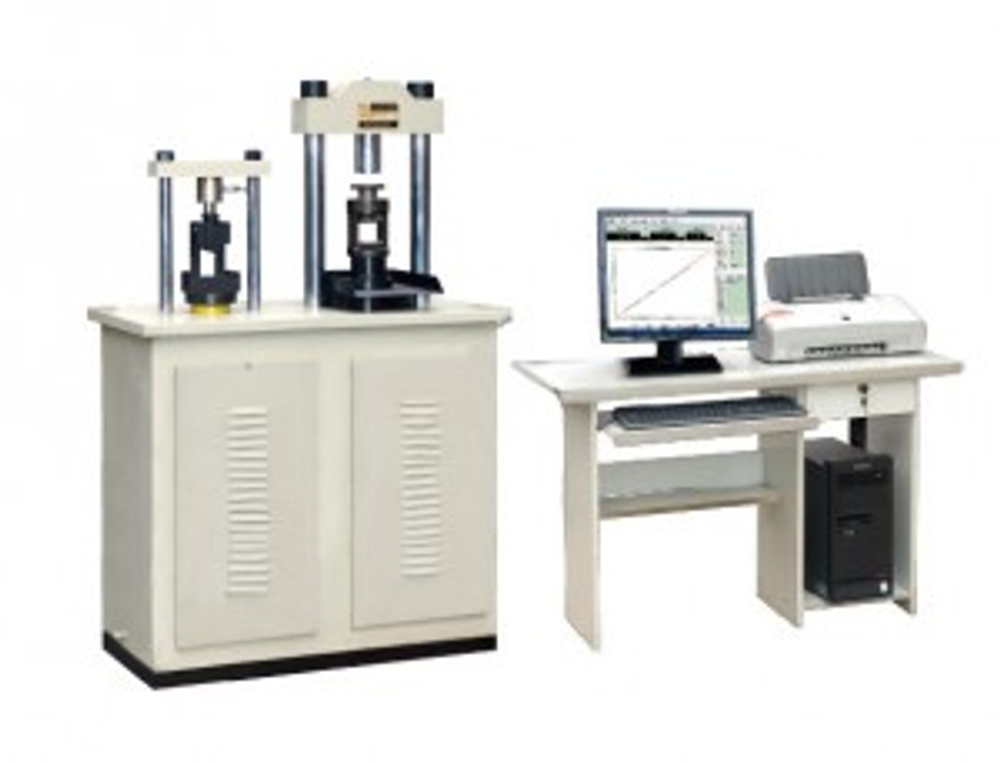

The YAW-300C full automatic compression test machine complies to the GB/T1769-1999 standard, it’s mainly used to perform compression & bending test for cement mortar, it features multi-function and space-saving, easy in operation.
Technical Specifications
| Max testing power | 300KN/10kN |
| Indication value relative error | ≤±1% |
| Loading rate | 0.3KN/S-10KN/S(Compression) 50N/s(bending) |
| Loading speed error | ±5% |
| Bearing plate size | φ155mm(compression) 80X150mm(bending) |
| Piston max stroke | 80mm |
| Piston dia. | φ130mm(Compression testing) Φ60mm(Bending) |
| Oil max pressure | 25MPa |
| Oil pump rated flow | 1.52L/min |
| Main machine power | 0.75kW |
| Main machine overall size(mm) | 820×450×1300mm |
