Description

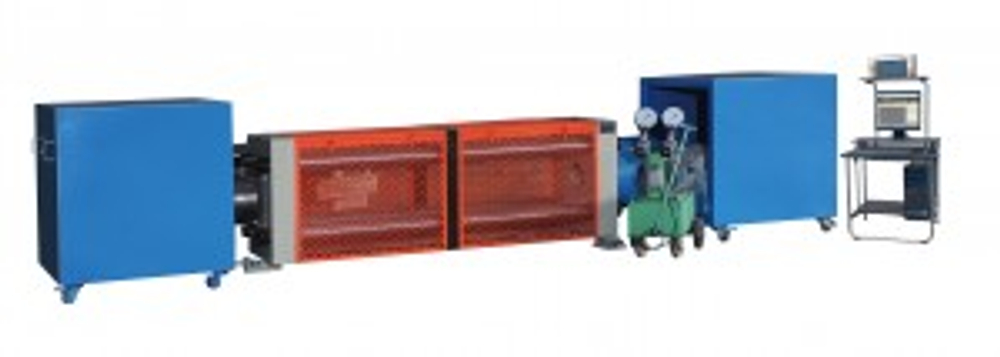

The static anchoring testing machine is used to test mechanical strength test of anchorage device, clamps, connectors, it’s widely used in railway, hydraulics engineering etc.
Features
1. Computer control, automatic data acquisition, process.
2. Test curve real-time indication
3. English operation menu, friendly HMI, easy operation
Technical specifications
| Spec. | MGW-5000 | MGW-6500 |
| Force Effective test range | 2%-100% | 2%-100% |
| Force indicating value relative error | ±1% | ±1% |
| Displacement measure range | 0-200mm | 0-200mm |
| Displacement indicating value relative error | ±1% | ±1% |
| Force rate control range | 1MPa-52 MPa | 1MPa-52 MPa |
| Force rate controlled relative error | ±1% | ±1% |
| Displacement rate controlled relative error | ±1% | ±1% |
| Force/displacement holding controlled range | 0.3%–100%F.S | 0.3%–100%F.S |
| Force/displacement holding relative error | ±1% | ±1% |
| Repeatability | ±0.5% | ±0.5% |
| Relative resolution | ±0.5% | ±0.5% |
| Piston stroke(mm) | 200mm | 200mm |
| Stretch distance (mm) | 3200mm | 3400mm |
| Overall size(mm) | 3200mm×780mm×650mm | 3400mm×800mm×680mm |
| Net weight(kg) | 3000kg | 4000kg |
