Model: HTH-70
Standards: 《Normal concrete durability performance test regulations》GB/T50082-2009
Description

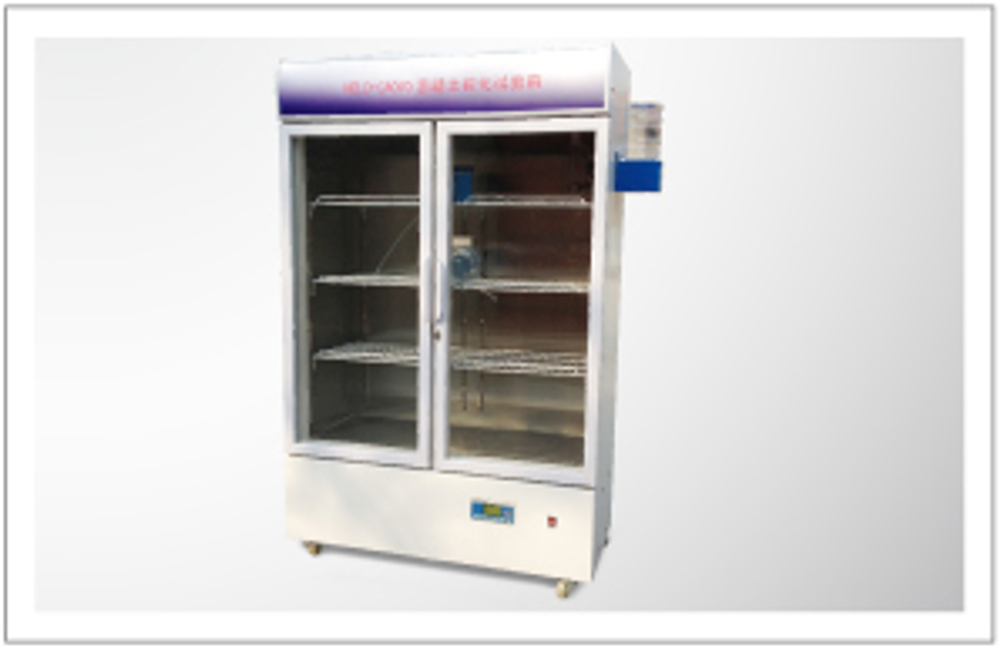

This chamber is used to perform concrete carbonation test, it is kind of common concrete durability test equipment.
Features
high accuracy temperature transducer with good linearity
High accuracy imported humidity transducer
Precision imported Infrared sensitive transducer
Technical specifications
Temperature range: 5-30℃±0.5℃
Resolution: ±0.1℃
Uniformity: ≦2℃
Accuracy: 0.5℃
Humidity range: 20-98%±2%, adjustable
Resolution:±0.5%
Uniformity: ≦2%
Accuracy: 2%
CO2 concentration: 0-20%±1% adjustable
Resolution: ±0.1%
Uniformity: ≦2%
Accuracy: 0.5%
Heating power: 500W refrigeration power: 250W humidification power: 30W power supply: 220V, 50±1HZ
Overall size: 700×700×2450mm; internal size: 1100×460×1200mm, two-door top-open type
Standard configurations
Main machine: 1set
CO2 reduction valve: 1pc
Gas pipe: 3m
Water bucket: 1pc
Wall-built up type water bucket base: 1pc
