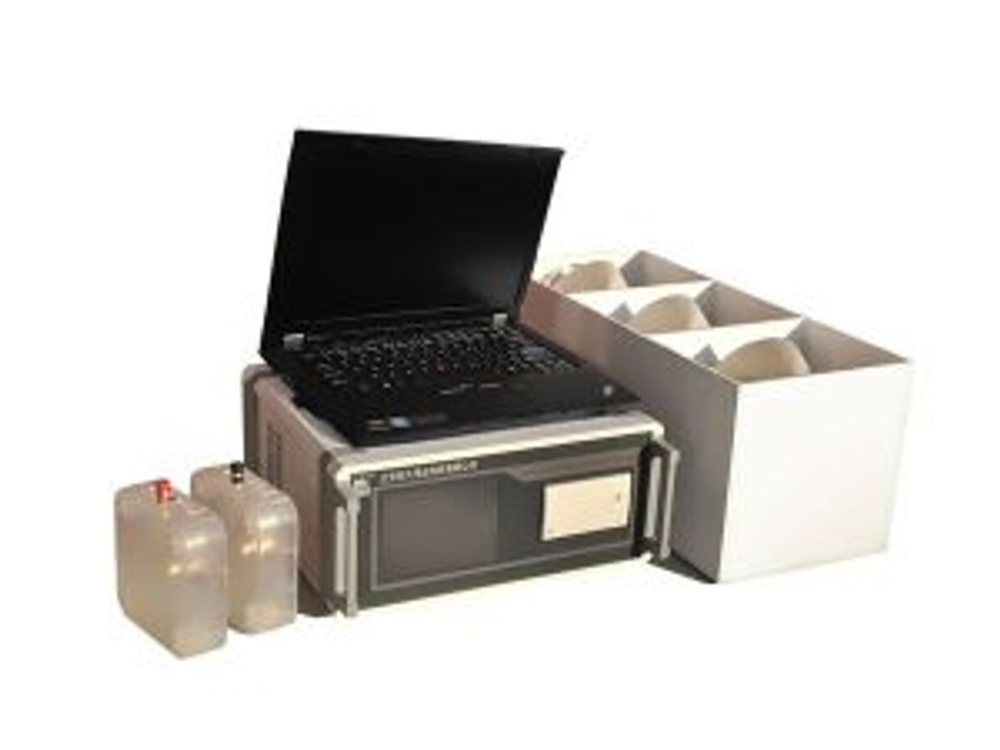

Model: HNJ-AR
Standards: GB/T 50082-2009, JTG/T B07-01-2006, ASTM C1202, AASHTO T277－05, NT BUILD 492, EU -Project CHLORTEST G6RD – CT – 2002 – 00855, CEN TC 51（CEN TC 104）/WG12/TG5
Description
This instrument can perform concrete chloride ion penetration test and chloridion diffusion coefficient test, thus to assess the concrete chloridion resistance rapidly. It’s kind of advanced concrete durability test instrument.
Features
1. 32-bit embedded ARM core guarantee high speed processing ability
2. 6.4 Inch LED industry touch screen, high definition, easy in operation.
3.16-bit high speed ADC inspection, linearity error reach 100PPM degree
4. Calculation function built-in, input parameters in lower computer can calculate test results automatically;
5. Short-circuit automatic protection design
6. Independent breakpoint protection function with each channel, can resume from the breakpoint after recovery.
7. Imported material made for fixture
8. Smart integration vacuum water saturated device
Technical specification
Output current accuracy: ±0.1ma, 16-bit AD acquisition
Temperature accuracy: ±0.1℃
Working voltage: 220VAC/0-60V (±0.1V), adjustable, patent 12-bit self-adjusting voltage technology
Power supply voltage: AC220V±10 /50Hz
Test channel: 6/12
Equipment specifications
Main machine size: 390*375*190(mm)
Main machine weight: 6kg
Overall size: 420*540*250(mm)
Water saturated machine: 32kg
Water saturated machine size: 750*680*400(mm)
Electric flux part weight: 9kg
Electric flux part overall size: 440*350*210(mm)
Diffusion coefficient parts weight: 9kg
Diffusion coefficient part overall size: 610*270*260(mm)
Total weight: 55kg
Standard configuration
Main machine
Sample fixture
Smart water saturated machine
