Model: HNJ-CR
This equipment has two working mode, while under Potential measure mode, it can test the rebar corrosion potential in concrete structure, can monitor either small or large scale and in any direction; under resistivity measure mode, can test the resistivity of concrete thus to evaluate the corrosion risk of concrete structure.
Features
Two rebar corrosion potential measure way, direct and gradient mode, suitable for different test field;
Large touch screen operation
Directly display of the corrosion potential color tone map, corrosion degree can be directly be evaluated;
Micro printer available
Technical specifications
Measure range: 0~2000 kΩcm,±1000mv
Readout: 0.1 kΩcm,1mv
Data storage cap.: 128 groups each
PC communication baud rate: 115200
LCD size: 640*480
Overall size: 160*115*50(mm)
Main machine size: 1.5kg

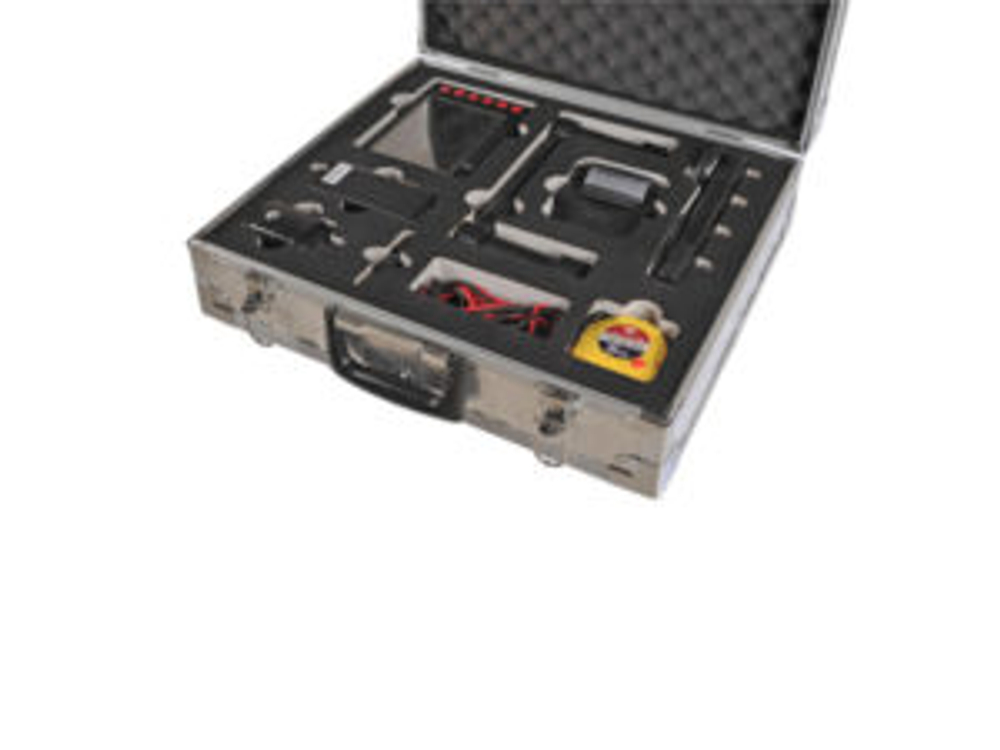

Accessories list
Wenner sensor, saturated copper sulfate probe
Resistivity standard module
AC adapter
Superconducting sponge plug
Connecting cable, connecting cable
Micro printer and charger
